Can anyone provide clarification on the following plot

  • Thread starter Thread starter R_AP_22
  • Start date Start date
  • Tags Tags
    Plot
AI Thread Summary
The plot in question likely illustrates mass transfer dynamics within a boundary layer, specifically in relation to flow over a flat plate. It involves the introduction of mass through a porous plate, which affects the overall mass transfer characteristics. The citation provided refers to a study by Hartnett and Eckert from 1957, which may offer foundational insights into the topic. Understanding the interaction between the flow and the porous medium is crucial for interpreting the plot accurately. This analysis is essential for grasping the principles of mass transfer in fluid dynamics.
R_AP_22
Messages
1
Reaction score
0

Homework Statement

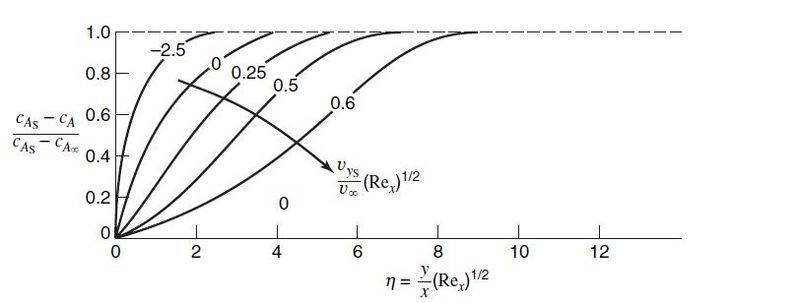

I was given a plot and a citation, but not too much clarification on what it represents. I believe it is describing mass transfer in a boundary layer.

Can anyone clarify

Homework Equations


J. P. Hartnett and E. R. G. Eckert, Trans. ASME, 13, 247 (1957).

The Attempt at a Solution



Attachments

  • Capture.JPG
    19.5 KB · Views: 464
Physics news on Phys.org
I think it represents mass transfer in flow past a flat plate in which mass is also being introduced by flow through the porous plate.
