Determine the resultant displacement

2 replies · 3K views · last reply
Physics2015
Messages
2
Reaction score
0

Homework Statement


Using the superposition principle, determine the resultant displacement of the particles in the medium, at the instant shown.

Homework Equations

The Attempt at a Solution


Attachments

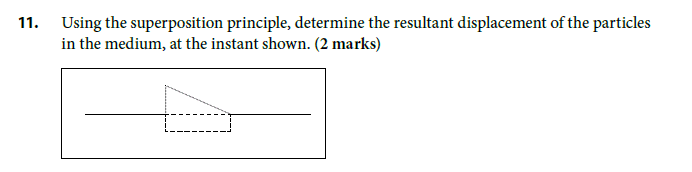

  • Wave diagram showing a horizontal equilibrium line with a dashed-outline triangular pulse above it and a dashed rectangular pulse below it, overlapping near the centre, for a superposition problem.
    4.5 KB · Views: 857
Physics2015 said:

Homework Statement


Using the superposition principle, determine the resultant displacement of the particles in the medium, at the instant shown.

Homework Equations

The Attempt at a Solution

This is what I could think of. I'm not sure how it should be

Attachments

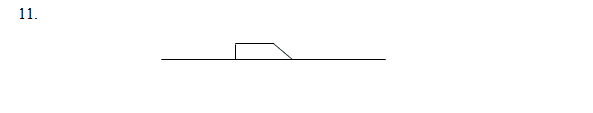

  • Line drawing of a block with a flat top and a sloped right side sitting on a horizontal line, labelled 11.
    298 bytes · Views: 758
