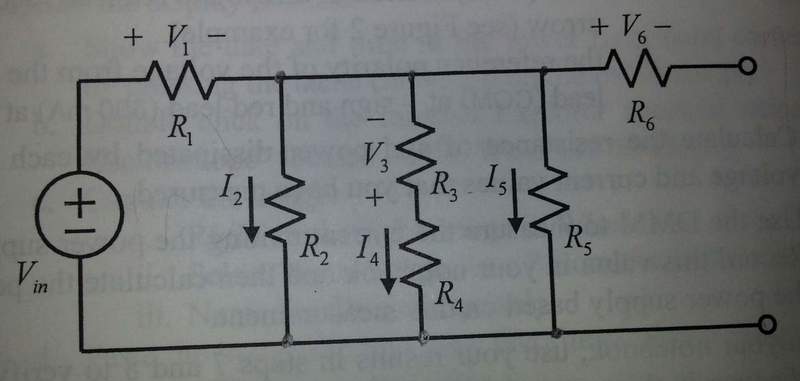

Question: the output terminal voltage for the circuit shown is measured to be 3.367V. Determine the value of each of the labeled variables.

So V_in is also 3.367V .. but what about everything else...


Attachments

  • 20140127_220621-1[1].jpg
    21.2 KB · Views: 482
Physics news on Phys.org
Hi sis007! http://img96.imageshack.us/img96/5725/red5e5etimes5e5e45e5e25.gif

Is this a trick question? Because, for the output voltage to be no lower than the voltage source, there can be no voltage drop between the two locations.

Last edited by a moderator:
Then should I try solving it backward... It still doesn't work.

If you rule out the possibility of it being a trick question, then it seems there is more detail than you have provided here. Can you post a photo of the question that is associated with this diagram.
