Identifying Mystery Part: 2x5 Alternating Pins

  • Thread starter Thread starter DailyDose
  • Start date Start date
  • Tags Tags
    Mystery
AI Thread Summary
The part in question is identified as a surface mount female pin header or receptacle, specifically from a JTAGICE-mkII. It features a 2x5 alternating pin configuration that is not aligned in a standard perpendicular or parallel manner. Common pin spacing for these connectors is typically 0.100 inches, although variations exist. Suggested manufacturers for similar parts include 3M, Hirose, and Samtec. If a suitable replacement cannot be found, soldering wires directly to the PCB pads is a viable alternative.
DailyDose
Messages
25
Reaction score
0

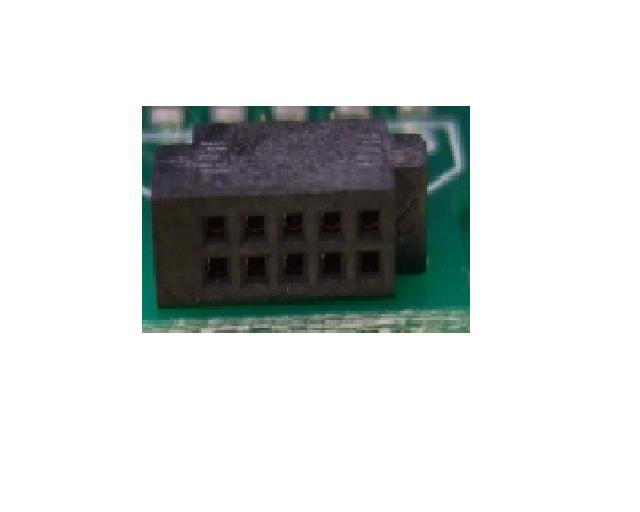

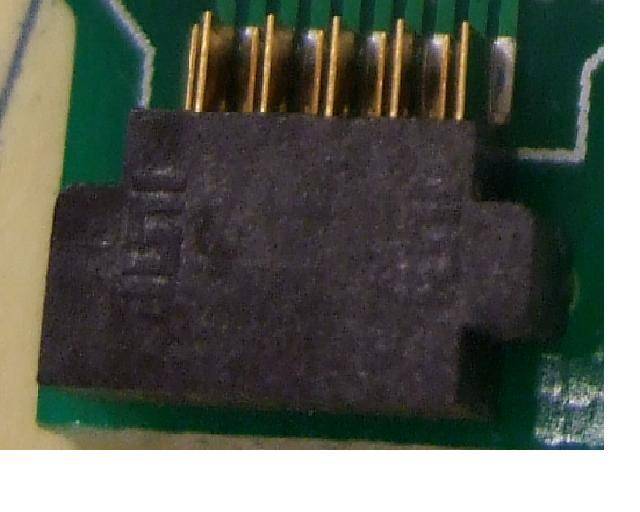

Hey, I took some photos of this part and they should be visible below or you'll need to click the attachments. But my question is as follows: I have no idea what to call this. I contacted Digi-Key and tried to describe it to them but to no avail. Notice, the pins are in 2x5 formation and they are alternating. They are not perpendicular/parallel (whichever way you like to describe it). Please help me identify this part or at least know what to call it. Thank you.


Attachments

  • Top.JPG
    31.9 KB · Views: 391
  • End.JPG
    11.2 KB · Views: 455
Engineering news on Phys.org
DailyDose said:
Hey, I took some photos of this part and they should be visible below or you'll need to click the attachments. But my question is as follows: I have no idea what to call this. I contacted Digi-Key and tried to describe it to them but to no avail. Notice, the pins are in 2x5 formation and they are alternating. They are not perpendicular/parallel (whichever way you like to describe it). Please help me identify this part or at least know what to call it. Thank you.

Where did you get it? Where is it from?

This is apart of a JTAGICE-mkII. Because of its structure, I assumed it would sold separately as well.

It's a surface mount female pin header (or receptacle). Find the pin pitch (the spacing, centre to centre, of the pits) and the spacing of the pins that connect to the PCB itself.

It's hard to tell, but common spacing (of the female receptacles) is 0.100", but I've seen metric and smaller/larger sizes also. 3M, Hirose, Samtef and others should have something pretty close. If all else fails, you can solder wires directly to the pads on the PCB, and run them to the appropriate connector on the other side (or just stripped wires if you're doing breadboard work)

Awesome, thank you for your help.
