Is 3rd Angle Orthographic Problem Too Difficult?

  • Thread starter Thread starter ajd-brown
  • Start date Start date
  • Tags Tags
    Angle
AI Thread Summary
The discussion revolves around a student at Brunel University struggling with a third angle orthographic problem assigned by their lecturer. The student expresses frustration and is unable to provide a visual of their attempt due to lack of a scanner. Other participants suggest using free drawing programs like Google Sketchup or MS Paint to illustrate the problem. The conversation emphasizes the importance of visual representation in solving orthographic problems. Overall, the thread highlights common challenges students face with technical drawing assignments.
ajd-brown
Messages
30
Reaction score
0

Homework Statement

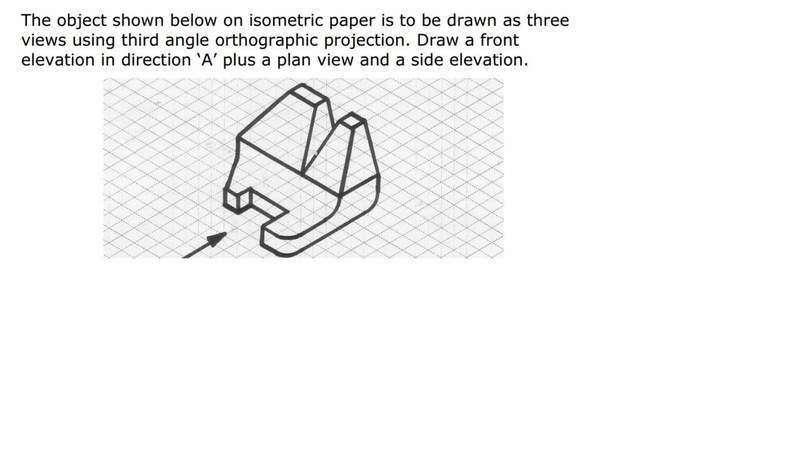

i was set this problem by my lecturer at brunel university london, i cannot for the life of me figure it out!

Homework Equations



see attached

The Attempt at a Solution



I can't show my solution as i don't have a scanner :( its not worth much anyway haha

thanks,

Anthony


Attachments

  • Untitled3.jpg
    24.5 KB · Views: 471
Physics news on Phys.org
I can't see any reason why that should be a difficult problem. What are you stuck on?

If you don't have a scanner do you have a free drawing program like Google Sketchup (now called Trimble Sketchup) or even MS Paint?
