Is this Circuit Actually a Second Order in Terms of Transfer Function?

Thread starter seang
Start date Apr 4, 2006
Tags

Frequency Frequency response Response

AI Thread Summary

The circuit in question is being analyzed for its order based on the transfer function v1/v2. Despite the initial assumption of it being second order, the presence of only one reactive element indicates it is actually a first order circuit. Participants in the discussion are encouraged to share their derived responses for further clarification. The focus remains on understanding the implications of the reactive element in determining the circuit's order. Accurate assessment of the circuit's characteristics is essential for proper frequency response analysis.

Apr 4, 2006

seang

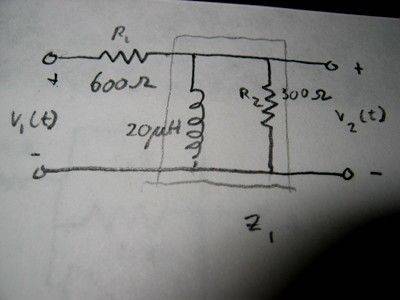

Hello, I'm studying the attached circuit in my first order frequency response chapter, and I swear this thing is a second order circuit (in terms of the transfer function v1/v2), am I doing something wrong?

Engineering news on Phys.org

Apr 5, 2006

berkeman

Admin

Only one reactive element, so it's first order.

Apr 5, 2006

Ouabache

Science Advisor

Homework Helper

can you show us the response you derived so far?
