  • #6,701
turi said:
Temperatures in unit 3 still rather "jumpy":
http://www.nisa.meti.go.jp/english/files/en20110511-2-5.pdf
E.g. upper part of RPV bottom head went from 235 to 296 °C within 6 hours (sensor failure not ruled out).

No this is a typing error 236°C http://www.tepco.co.jp/nu/fukushima-np/f1/images/032_1F3_05110600.pdf

Last edited by a moderator:
Engineering news on Phys.org
  • #6,702
ihatelies said:
OK, two posts describing "bent in". Can you help me better understand what you mean by that?

I never saw where this was answered so I thought I'd help you out. If you look at the "round area" you will see where the metal is pointing downward like it wants to go inside the "hole" that would be bent in. If it were point upward, that would be bent out.

That said, I don't see were re-hashing the same arguments about what might have happened day after day are accomplishing much. There is nothing to be learned from it because we will NEVER know what really happened. Nobody will ever be proven right or wrong. What matters now is what IS happening or what WILL happen. Hopefully it will be whatever is best to reduce radiation and get this major cluster under control instead of making it worse.

  • #6,703
""So you think a sky-hook was used to lower the replacement shroud through a roof opening? ""

no, as i said a big crawler crane.

i thought somebody else might have run across old photos and they'd put an end to the speculation. That shroud job was surely well documented in the TEPCO archives since they were the first in the world to do it. There would have been other papers published on it. I'll see if i can track something down.

Simple logic. When you can't prove something right you got to prove it false and move on to next wild-*** idea. Else you're just swapping insults. If you can't disprove it you admit it as a possibility and weigh it against the other possibilities.

  • #6,704
I would like to thank Nancy Foust, while I do not share most of her assessments , thumb up for the picture collecting job!
<3

http://www.houseoffoust.com/fukushima/tepco_pics/R3_july18_6.jpg
[URL]http://www.houseoffoust.com/fukushima/tepco_pics/R3_containmentcap2.gif[/URL]

Now about the falling down Unit 4.. New better quality allow imo to conclude that the unit it not falling .. perspective + what I see as a fire hose + no DOF is what it was about
[PLAIN]http://k.min.us/ikXNpC.jpg

About the hole theory, first of all I stand corrected the picture summited was new (to me at least) , having said that I toke a look at the same spot under 3 different but close angle , and I can not see that as a hole made by an inner force. Some of the roof structure is missing some are bent , but in my repeated opinion not in the suggested way
[PLAIN]http://k.min.us/jntf3c.jpg

Last edited by a moderator:
  • #6,705
Re lifting a shroud through a round hole in roof with a crane
here's what TEPCO proposed in a 1995 paper, for a somewhat bigger lift

{ does anybody know how to embed a PDF picture? }
this link., page 6 of 8

http://www.jsme.or.jp/monograph/pes/1999/ICONE7/PAPERS/TRACK04/FP7292.PDF

edit tried to insert image no luck

Last edited by a moderator:
  • #6,706
Fred,
Did you notice that the reactor pictures are stamped R/5, that would lead me to believe that this is reactor #5,

I only mention this so we do not have to have ten pages discussing the channel which is shown more narrow on other pictures.

I do not care the with of the cahnnel, I think I understand your intented use.. just wanted to point out that info.

  • #6,707
SFP 3 went critical

There is something which hasn't been mentioned recently, the gamma ray burst which was detected in Tepco's bunker at the time of the #3 blast.

Has anybody come up with any new theories about that recently?

  • #6,708
jim hardy said:
Re lifting a shroud through a round hole in roof with a crane
here's what TEPCO proposed in a 1995 paper, for a somewhat bigger lift

{ does anybody know how to embed a PDF picture? }
this link., page 6 of 8

http://www.jsme.or.jp/monograph/pes/1999/ICONE7/PAPERS/TRACK04/FP7292.PDF

Interesting find, it's not only the shroud, it's a study about replacing the whole RPV! I wonder if any of their RPV are in a state that might need full replacement?

The shroud goes into the RPV. It probably doesn't fit through the refueling tunnel and that vertical shaft for cask and fuel and whatever transfer in the SW corner, does it?

EDIT: The documents in your other post are also pretty interesting (It's kind of interesting that all this stuff can be found on the internet...). So, it is extremely likely they had welding equipment inside unit 4, as there seems to be a whole bunch of welding involved there and they mention that in one of those documents. They also write they sliced the old shroud into small pieces and "put the containers in DSP". They used "underwater plasma slicing".

EDIT2: With respect to https://www.physicsforums.com/showpost.php?p=3292292&postcount=6332 , one of the documents you found mentions that N2 nozzles are recirculation inlets, N4 is feedwater as we know, and N5 is core spray. (Just for completeness.)

[I don't think there is any reasonably easy way to link to a picture in a pdf file. Attached is a simple screenshot.]


Attachments

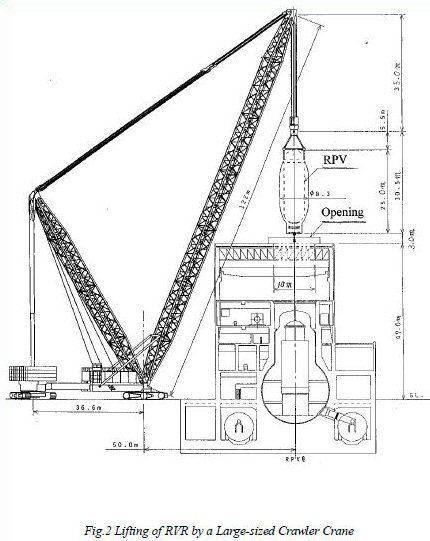

  • RPVreplace.JPG
    36.4 KB · Views: 494
Last edited by a moderator:
  • #6,709
etudiant said:
Thank you for this interesting picture. It is the first I've seen of the storage tanks that will need to hold the roughly 100,000 cubic meters of water accumulating in the plant by the time the water decontamination plant starts operations.
The site however seems planned for 20 tanks, each about 6 meters high and about 10 meters in diameter, for a volume of only some 10,000 cubic meters. Where is the rest of the installation?

The video mentions that more tanks are being built near Unit 6.

These may not be storage tanks, but filtering tanks.

There was something shown on the news a couple of weeks ago about passing contaminated water through various stages of filtering, so that it can be re-used for cooling the reactors without having to continuously pump in (and contaminate) new water.

  • #6,710
jim hardy said:
Re lifting a shroud through a round hole in roof with a crane
here's what TEPCO proposed in a 1995 paper, for a somewhat bigger lift

{ does anybody know how to embed a PDF picture? }
this link., page 6 of 8

http://www.jsme.or.jp/monograph/pes/1999/ICONE7/PAPERS/TRACK04/FP7292.PDF

edit tried to insert image no luck

Jim,
This is an excellent find, and I would guess this may be one of the reasons that several weeks ago Tepco/Media had mentioned removal of damaged componets interms of "one unit".

The reversal would not work quite the same, but it appers the industry has some background work learking in the past to draw on, such as I am sure every option is be considered. Simialar concepts could be possible depending on the conditions of the building contents.

And with the exception of building two they don't need to cut the hole in the roof..

Last edited by a moderator:
  • #6,711


unlurk said:
There is something which hasn't been mentioned recently, the gamma ray burst which was detected in Tepco's bunker at the time of the #3 blast.

Has anybody come up with any new theories about that recently?

Could be something as simple as gamma shine from radioactive debris in the cloud

  • #6,712


unlurk said:
There is something which hasn't been mentioned recently, the gamma ray burst which was detected in Tepco's bunker at the time of the #3 blast.

Has anybody come up with any new theories about that recently?

Brought it up just a few pages back, too (and before that, 50 pages or so back). Just questioning what it means, really. I can not see how definite answers on that can be given with the little we know.

We don't really know where the bunker is situated and how he is shielded, or do we? We only know that the burst was supposedly 12x higher than normal (measured by humans on a personal counter/dosimeter/stationary or handheld counter?).

We also don't know if there were any neutron dectectors running and if there's any data on that. Due to the power outage no stationary sensors were online. We don't know the exact state of #3 and the SFP during the explosion which could explain the gamma burst xD.

A gamma burst would suggest criticality before/during the explosion. I could think about other explanations, but these sound crank to me so I rather not post them. Maybe I'm missing something really obvious though.

  • #6,713


I see no post of mine supporting TCup's theory of the origin of the event at unit 3 on March 14th so I'll go on record here.

I believe that some amount of oxygen was generated in the reactor vessel or the torus assembly which provided enough Oxygen in some localized spot to create a flash of a hydrogen explosion. We know there was plenty of Hydrogen in the drywell.

I also believe that Hydrogen was leaking out through the shield plugs (in small quanities) and thus there may have been hydrogen in the fuel transfer chute.

At 11:06 on March 14th a hydrogen flash was powerful enough to dislodge the shield plugs and to eject some flame and quantity of hydrogen (and for sure some hot steam) into the region above the plug(s).

This was the initiating event for the explosion which sent a fireball out of the south side of reactor building three - which is caught on video in the early time slices of the big blast.

I think of that event as the reactor secondary containment vessel "belching."

I think it may have happened again a few mornings ago when there was such activity just before dawn and then again this morning. But there hasn't been any secondary explosions associated with this process since March 14th.

  • #6,714
maddog1964 said:
...
aye you are right to make this point as I did not legend them ,none the less it is the closest representation at hand , and it give some good perspective on how big this area is

  • #6,715


RealWing said:
Could be something as simple as gamma shine from radioactive debris in the cloud

That's some pretty energetic gamma "shine" don't you think?

Do you think there may have been a fizzle of criticality in the release of radioactive particles?

It just doesn't seen that Fukushima 3 released that much airborne plutonium. And it would have to be plutonium to create a fizzle in the air don't you think?

  • #6,716
unlurk said:
There is something which hasn't been mentioned recently, the gamma ray burst which was detected in Tepco's bunker at the time of the #3 blast.

Has anybody come up with any new theories about that recently?

Gamma rays have been linked to terrestrial lightning. Could a local thunderstorm be the culprit? Sorry if this is the stupidest question of the week.
http://news.nationalgeographic.com/news/2007/10/071011-lightning-rays.html

Respectfully submitted,
Steve

Last edited by a moderator:
  • #6,717
Dotini said:
Gamma rays have been linked to terrestrial lightning. Could a local thunderstorm be the culprit? Sorry if this is the stupidest question of the week.
http://news.nationalgeographic.com/news/2007/10/071011-lightning-rays.html

Respectfully submitted,
Steve

The weather was clear that morning, there were no thunderstorms in the Tohoku region.
But I guess it's good to consider all possibilities.

Last edited by a moderator:
  • #6,718
elektrownik said:

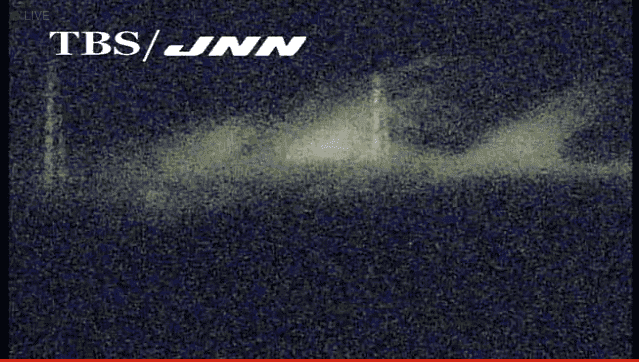

Something is bad, reactor 3 appear to by on fire

TEPCO has responded that the photos from the previous time was steam from the spent fuel pools of reactor #3 and #4.

http://www.digtriad.com/news/national/article/174708/175/Japan-New-Smoke-At-Nuclear-Plant

Last edited by a moderator:
  • #6,719
Astronuc said:
Ah thanks for that. I was thinking the other picture was looking from E or W, but wasn't sure.

If that is looking north at the DS pit then, the back wall is the structure between the DS pit and reactor cavity. They would not transfer fuel through there, but they would transfer the steam separator and possible steam dryer. The steam leakage then would seem to be coming from containment - possibly the reactor cavity.

From the pictures I have seen posted here, it seems building 3 has steam coming from 3 areas, and they all seem to be at what I believe would be the edge of the reactor core. Is it possible that this is where all the steam is coming from? Containment, or reactor cavity escaping around weak spots at the edge? (Not a critical SPF3?)

And if so, is it possible that there had also been part of the explosion occur on floors below the refueling deck? Which would explain the damage to the north west corner?

If that is entirely possible, I would love to hear the mechanics of how it could have happened. In layman terms, obviously! :D

Thanks in advance...

  • #6,720
yakiniku said:
TEPCO has responded that the photos from the previous time was steam from the spent fuel pools of reactor #3 and #4.

http://www.digtriad.com/news/national/article/174708/175/Japan-New-Smoke-At-Nuclear-Plant

elektrownik's post was a few hours ago, the news piece you cite was released on the 8th

Last edited by a moderator:
  • #6,721
Ms Music said:
From the pictures I have seen posted here, it seems building 3 has steam coming from 3 areas, and they all seem to be at what I believe would be the edge of the reactor core. Is it possible that this is where all the steam is coming from? Containment, or reactor cavity escaping around weak spots at the edge? (Not a critical SPF3?)

And if so, is it possible that there had also been part of the explosion occur on floors below the refueling deck? Which would explain the damage to the north west corner?

If that is entirely possible, I would love to hear the mechanics of how it could have happened. In layman terms, obviously! :D

Thanks in advance...

In my post just above I propose that the containment lid(s) for the drywell were physically moved on March 14th during the beginnings of the explosive event.

I'll add to that that it is unlikely that the shield plugs ever achieved a tight seal again after that event. The result is gas leakage from the drywell and occasional puffs - or belches from the lower regions.

Oh, BTW
Thanks again for finding that seismic data, it's just too bad that there is no data for the 14th.

  • #6,722
http://earthquake.usgs.gov/earthquakes/seqs/events/usc0001xgp/

Last edited by a moderator:
  • #6,723
AntonL said:
The same question I ask with the installation of what is obvious second hand tanks (rust marks on the flanges). I stated earlier I can see no evidence of deep foundations (no excavation marks) just a leveling slab of concrete on the tarmac. Supposedly they will use similar temporary flexible pipes to pump contaminated water to these tanks. Furthermore these tanks are bottom filled (as per the drawing snippet), catastrophic result if failure in filling system.

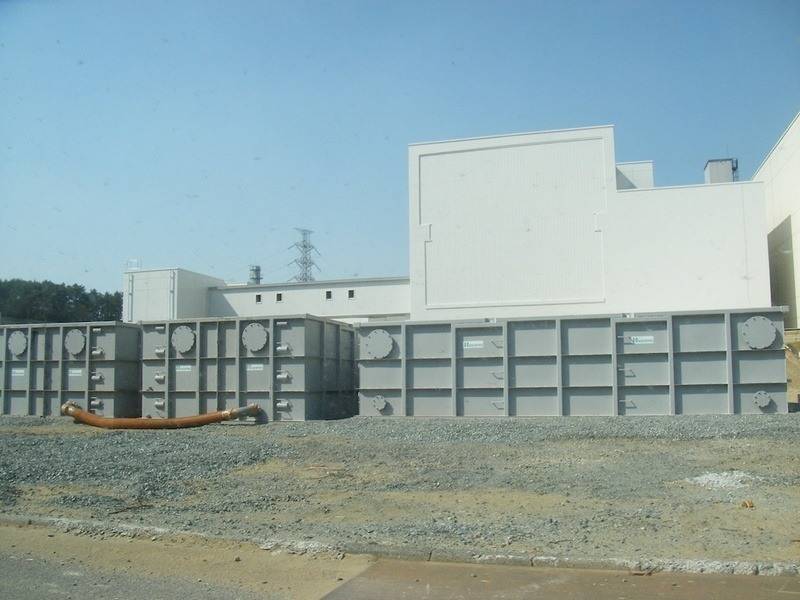

Regarding the storage tanks, the photo I saw previously (attached) looks to at least have a lower center of gravity. I wonder where the tanks from the older attached photo are located.

When tanks are bottom filled, what safety mechanisms are available to stop the liquids flowing back out if there is a failure in the filling system?


Attachments

  • FukushimaWaterStorageTank_resized.jpg
    50.5 KB · Views: 453
  • #6,724
jim hardy said:
Re lifting a shroud through a round hole in roof with a crane
here's what TEPCO proposed in a 1995 paper, for a somewhat bigger lift

{ does anybody know how to embed a PDF picture? }
this link., page 6 of 8

http://www.jsme.or.jp/monograph/pes/1999/ICONE7/PAPERS/TRACK04/FP7292.PDF

edit tried to insert image no luck

There is a construction video on youtube that someone here pointed out a while back. At around the 10:30 mark you can see them installing the RPV for Unit 1 way back when.



A few weeks ago I posted about the core shroud replacements TEPCO has been doing https://www.physicsforums.com/showpost.php?p=3247620&postcount=3769

The first link in that post goes to a Hitachi website that has some good information. One of the pages indicates the core shroud is about 75% the diameter of the RPV and about 1/3 as long from top to bottom. The last link is for a different PDF from the same conference as the one you posted. It describes some of the work TEPCO did when they replaced Unit 3's core shroud back in the late '90s.

Last edited by a moderator:
  • #6,725
unlurk said:
elektrownik's post was a few hours ago, the news piece you cite was released on the 8th

As stated, it was for the photos that were posted previously of steam over the reactors (not the photo from elektrownik but the time before that).

Should TEPCO's statements be true, it is possible that the new photos are the result of the same ongoing situation.

  • #6,726
unlurk said:
In my post just above I propose that the containment lid(s) for the drywell were physically moved on March 14th during the beginnings of the explosive event.

I'll add to that that it is unlikely that the shield plugs ever achieved a tight seal again after that event. The result is gas leakage from the drywell and occasional puffs - or belches from the lower regions.

The Drywell head has leaked during past tests in the US - at pressures far less than those reported at unit 3. Blowing out a gasket between the DW Head and Drywell / PCV is not out of the question. Even a small leak would allow enough hydrogen to accumulate to make a mess. If a hydrogen explosion occurred IN the Drywell, further damage to the DW head would be likely. It kinda looks like some permanent damage to that seal has occurred and is now leaking steam. Would not take a large area of failure to allow that amount of steam to escape.

Hopefully a member with better knowledge than mine will confirm / deny this: I doubt the concrete biologic shield plug or the interlocking blocks in the fuel tunnel were EVER water or air tight! Steam above the DW head will leak to the refueling floor and beyond.

  • #6,727
Most Curious said:
I doubt the concrete biologic shield plug or the interlocking blocks in the fuel tunnel were EVER water or air tight!

And especially not hydrogen tight. I think you have hit the nail on the head.But it seems as if you and I are the only two here who understand (or are willing to speak about) what is going on with these "steam leaks."

There seems to be some taboo subjects here.edited I meant hydrogen not nitrogen

Last edited:
  • #6,728
unlurk said:
In my post just above I propose that the containment lid(s) for the drywell were physically moved on March 14th during the beginnings of the explosive event.

I'll add to that that it is unlikely that the shield plugs ever achieved a tight seal again after that event. The result is gas leakage from the drywell and occasional puffs - or belches from the lower regions.




Oh, BTW
Thanks again for finding that seismic data, it's just too bad that there is no data for the 14th.

FYI shield plugs are only designed to provide shielding diirectly over the core during normal operation. They are set in place not bolted or sealed so they have no fiunction to provide a pressure seal. The steam space above the dryers and separators is filles with N-16 during operation. The core itself is shielded from the steel of the steam dome, dryers and separators, vessel head and the containment cap dome and the liquid water above the core. N-16 decay generates high energy gammas which produce a shine type of exposure if not shielded.

Once the containment cap begins to leak (as low as 27 psid based on sources quoted in earlier posts) the release is to the refueling floor air space.

  • #6,730
Looks like the recalibration efforts in reactor one may have succeeded, however the news is not good. In fact it may be very bad, although I suspect many people were already expecting something like this:

"JNN's investigation has revealed that there is hardly any water inside the Reactor Pressure Vessel (RPV) and the Containment Vessel of the Reactor 1 at Fukushima I Nuclear Power Plant"

http://ex-skf.blogspot.com/2011/05/fukushima-i-nuke-plant-reactor-is-rpv.html

Guess we will now have to wait for figures and confirmation from TEPCO.

Last edited by a moderator:
  • #6,731
Nuceng, while we are in this area, I have a question:

I understand during refueling the reactor well is flooded and a seal exists between the RPV and DW. (IIRC, there was an accident some years back where it leaked and allowed some 200,000 gallons of water to leak into the DW.) My question is, how or if, this seal is changed, maybe a hatch or several are removed after the reactor head is installed and the well is drained but before the DW head is installed? I assume during operation the lower DW communicates with the DW head area above the reactor head?

  • #6,732
NUCENG said:
FYI shield plugs are only designed to provide shielding directly over the core during normal operation. They are set in place not bolted or sealed so they have no function to provide a pressure seal. The steam space above the dryers and separators is filles with N-16 during operation. The core itself is shielded from the steel of the steam dome, dryers and separators, vessel head and the containment cap dome and the liquid water above the core. N-16 decay generates high energy gammas which produce a shine type of exposure if not shielded.

Once the containment cap begins to leak (as low as 27 psid based on sources quoted in earlier posts) the release is to the refueling floor air space.

That fits with my previous assumptions.

Are you also in agreement with my scenario about what happened on March 14th?

By that I mean that with the 27 or 57 or whatever psi level that was continuously present that morning a few puffs of oxygen/hydrogen reaction lifted the containment caps enough to create a much more substantial jet of hydrogen and flame and steam out into the region of the "cattle trough" initiating the sequence of events which we can see on film?

Are you also in agreement with the idea that occasional "puffs", or minor gas explosions are occurring and causing the episodes that we have seen this morning and last week?

  • #6,733
sp2 said:
WSJ reporting over-limit Cesium-137 in tea leaves grown SOUTH of Tokyo.

IF this is confirmed, it's a very big deal.
http://online.wsj.com/article/SB10001424052748703864204576317152274615660.html

Singapore banned vegetables that were shipped from Shizuoka. Shizuoka is further away from Tokyo than Kanagawa. The levels of radiation exceeded codex guidelines. The news is quite old but I didn't see it widely publicised:

http://www.soshiok.com/article/15097

http://www.asiaone.com/News/AsiaOne+News/Singapore/Story/A1Story20110401-271240.html

  • #6,734
unlurk said:
elektrownik's post was a few hours ago, the news piece you cite was released on the 8th

I'm glad they responded to it...even if I don't necessarily trust them. I was watching at the time are talking about and it looked like black smoke as it moved past the towers. Pics were posted here about it over the weekend. The pics posted today made me think it was fog.

  • #6,735
A thread about one reactor problem would be hard to follow. This one is actually about 6 reactors, and at least six fuel ponds, and all kinds of water related issues, and four explosions, in four different reactor buildings. It's not surprising that it is vast and almost impossible to catch up if you haven't been reading since the start.

This will probably get worse in the future.

  • #6,736
robinson said:
A thread about one reactor problem would be hard to follow. This one is actually about 6 reactors, and at least six fuel ponds, and all kinds of water related issues, and four explosions, in four different reactor buildings. It's not surprising that it is vast and almost impossible to catch up if you haven't been reading since the start.

This will probably get worse in the future.

That is a fair assessment.

  • #6,737
Last edited by a moderator:
  • #6,738
pdObq said:
Interesting find, it's not only the shroud, it's a study about replacing the whole RPV! I wonder if any of their RPV are in a state that might need full replacement?

The shroud goes into the RPV. It probably doesn't fit through the refueling tunnel and that vertical shaft for cask and fuel and whatever transfer in the SW corner, does it?

EDIT: The documents in your other post are also pretty interesting (It's kind of interesting that all this stuff can be found on the internet...). So, it is extremely likely they had welding equipment inside unit 4, as there seems to be a whole bunch of welding involved there and they mention that in one of those documents. They also write they sliced the old shroud into small pieces and "put the containers in DSP". They used "underwater plasma slicing".

EDIT2: With respect to https://www.physicsforums.com/showpost.php?p=3292292&postcount=6332 , one of the documents you found mentions that N2 nozzles are recirculation inlets, N4 is feedwater as we know, and N5 is core spray. (Just for completeness.)

[I don't think there is any reasonably easy way to link to a picture in a pdf file. Attached is a simple screenshot.]

I had a friend pull information from design drawings in a BWR-4 Mk1 plant. The core shroud is 167 inches ID (4.24 m) x 204 in length (5.18 m). The first floor is the reactor building where the cask loading/unloading is performed is about 28 ft high (8.54 m). The equipment hatch from the railroad airlock to the refueling floor is 20 ft x20 ft (6.09 m x 6.09 m. Can't guarantee those dimensions apply to Fukushima, but at least at that plant a replacement shroud could have been uprighted and lifted through the equipment hatch.

The main reasons that the replacement of an RPV is different are that the weight exceeds the capacity of the crane; there is no way to upright a load that big on the cask load area; and the RPV is taller than the refueling floor clearance for the RB crane. Those limitations don't apply to the core shroud.

  • #6,739
NUCENG said:
Once the containment cap begins to leak (as low as 27 psid based on sources quoted in earlier posts) the release is to the refueling floor air space.

This has been my feeling all along: that a compromised drywell cap seal allowing gas or steam to escape would result in that gas diffusing upward through the non-pressure-sealed shield plugs and into the upper reaches of the secondary containment, i.e. the reactor building. That makes more sense to me than jetting sideways through the fuel transfer chute blocks and whatever seal might be present there. The pressure increase, to me, seems more likely to seat the tongue-and-groove shield blocks leading to the fuel chute even more firmly in place, making it less, not more, likely to get through there. Not when there's a path out through the plugs above that were never designed to hold pressure at all.

There are other scenarios studied over the years that result in containment breach that do not involve the drywell cap being displaced or breached. A structural failure of the torus is just as likely to be the release point for an overpressurized containment as the drywell cap. So are the seals for electrical conduit drywell penetrations. So are the emergency cooling systems' pump seals. So are leaks in the venting ductwork. All these potential pathways could leak substantial amounts of hydrogen into the building.

Occam's Razor leads me to believe that a burping drywell cap jetting burning hydrogen sideways at the exact spot where the fuel chute blocks/gates/seals might be weak is less likely to be the release path for hydrogen into the secondary containment than any number of other, simpler explanations. I'm not claiming the idea is totally without merit, but until we learn more I don't see how it can be given more credence than any of the other equally credible scenarios.

  • #6,740
robinson said:
A thread about one reactor problem would be hard to follow. This one is actually about 6 reactors, and at least six fuel ponds, and all kinds of water related issues, and four explosions, in four different reactor buildings. It's not surprising that it is vast and almost impossible to catch up if you haven't been reading since the start.

This will probably get worse in the future.
I have been trying to catch up for three weeks now.
I'm up to about post #3750 in my begin at the beginning task but the posts at the end keep me busy too. Today has seen a lot of posts. I think I'm only about 500 posts short of having read them all but I'm not sure if I'll ever get there.

IMO
If this thread were broken up it would then be impossible to develop a big picture of the event. I want to hear about what people are discussing about aspects of this that I'm not really keeping up on. If the thread were broken up I know that I wouldn't keep current with all the threads.

  • #6,741
robinson said:
A thread about one reactor problem would be hard to follow. This one is actually about 6 reactors, and at least six fuel ponds, and all kinds of water related issues, and four explosions, in four different reactor buildings. It's not surprising that it is vast and almost impossible to catch up if you haven't been reading since the start.

This will probably get worse in the future.

Unfortunately, you are entirely correct.
Just the lake in the turbine hall will take till year end to drain, given a 1200 ton/ day processing capacity, a 100,000 ton water problem and a 500+ ton/day new water injection.
So this thread can reasonably be extrapolated to at least 20,000 posts, possibly much more as additional data becomes available.
At The Oil Drum, another interesting site, the discussion threads were chopped into roughly weekly sections.
This kept them manageable, but also made for a lot of repetition.
Unfortunately, this disaster has so many dimensions that even a weekly update could easily have a thousand entries.
Nevertheless, I do hope the leaders of this forum take time to look ahead, make a realistic appraisal of the expected volume of activity and gear up accordingly. This will cost money, but I believe this forum is sufficiently useful that the needed support will be forthcoming. The Gulf spill had a similar catalyzing effect on The Oil Drum.

  • #6,742
Jim Lagerfeld said:
Looks like the recalibration efforts in reactor one may have succeeded, however the news is not good. In fact it may be very bad, although I suspect many people were already expecting something like this:

"JNN's investigation has revealed that there is hardly any water inside the Reactor Pressure Vessel (RPV) and the Containment Vessel of the Reactor 1 at Fukushima I Nuclear Power Plant"

http://ex-skf.blogspot.com/2011/05/fukushima-i-nuke-plant-reactor-is-rpv.html

Guess we will now have to wait for figures and confirmation from TEPCO.

Confirmed Unit 1 has huge problems
http://www.asahi.com/national/update/0512/TKY201105120174.html
http://english.kyodonews.jp/news/2011/05/90559.html

and check the water level logs published by Tepco
http://www.tepco.co.jp/nu/fukushima-np/f1/images/011_1F1_05120600.pdf

What does this imply for the other reactors especially Unit 3 which shows extremely high temperatures and 150oC at the bottom.

Or have Tepco engineers made a mistake in calibrating the differential pressure meters?

Last edited by a moderator:
  • #6,743
Jim Lagerfeld said:
Looks like the recalibration efforts in reactor one may have succeeded, however the news is not good. In fact it may be very bad, although I suspect many people were already expecting something like this:

"JNN's investigation has revealed that there is hardly any water inside the Reactor Pressure Vessel (RPV) and the Containment Vessel of the Reactor 1 at Fukushima I Nuclear Power Plant"

http://ex-skf.blogspot.com/2011/05/fukushima-i-nuke-plant-reactor-is-rpv.html

Guess we will now have to wait for figures and confirmation from TEPCO.

Confirmed at 12pm TEPCO conference: fuel in reactor one is completely exposed; previous reports that only the top 1.5-1.7m of the fuel were exposed attributed to sensor error.

They now believe 100 percent fuel melt in reactor one, with some water cooling still occurring in the bottom of the vessel, as indicated by the relatively low temperatures measured outside the vessel.

They are 'strongly emphasizing' that they believe they can still cool the vessel.

(Loose partial translation to give you the gist)

*Edit - also see AntonL's links above!

Last edited by a moderator:
  • #6,744
Jim Lagerfeld said:
They are 'strongly emphasizing' that they believe they can still cool the vessel.

As long as there isn't a problem with re-criticalities the worst is probably over with unit one. They will probablyhave to keep cooling it for the next decade or so.

  • #6,745
Thanks M&Mand Nuke.

Did you friend have the crane clearance on refueling floor?

One of the articles i saw today showed a generic 'to scale' drawing of shroud standing up in a GE containment, ready to be lifted and set into vessel..
There was barely clearance for crane with shroud sitting in S/D pool which is lower than refueling floor. So i think that's the bottleneck, vertical clearance to overhead crane once it's up to refueling floor.
Looked like there's plenty of clearance to roof but crane is lower than roof by at least enough for people to stand on it and clear the roof beams.

The article was by a services company that makes a special lifting ring for shroud, to accomplish that particular lift - i looked for an hour and can't find it again but will post link if do.

So it was a generic drawing , again not Fukushima . But a nice round roof beam sounds to me more likely to have been made on purpose than accident.

  • #6,746
Most Curious said:
Nuceng, while we are in this area, I have a question:

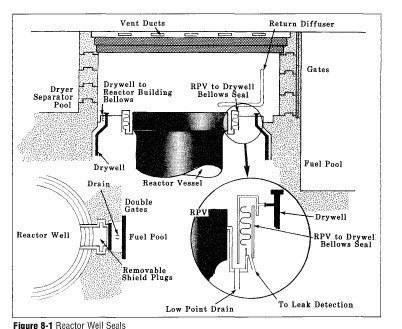

I understand during refueling the reactor well is flooded and a seal exists between the RPV and DW. (IIRC, there was an accident some years back where it leaked and allowed some 200,000 gallons of water to leak into the DW.) My question is, how or if, this seal is changed, maybe a hatch or several are removed after the reactor head is installed and the well is drained but before the DW head is installed? I assume during operation the lower DW communicates with the DW head area above the reactor head?

You are correct. There are manholes in the bellows which are closed during floodup of the reactor cavity for refueling. They are opened during normal operation to permit drywell cooling to cool the area above the vessel head.


Attachments

  • RPV DW Bellows.jpg
    RPV DW Bellows.jpg
    25.3 KB · Views: 458
  • #6,747
unlurk said:
As long as there isn't a problem with re-criticalities the worst is probably over with unit one. They will probablyhave to keep cooling it for the next decade or so.

I wish I could concur with you on that point, but the fact that they are unable to maintain any stable water level over the core at this point does not inspire confidence.

http://www.47news.jp/CN/201105/CN2011051201000254.html

This summary goes on to say that they are 'making preparations' towards the installation of a new cooling system for reactor one, but that they are currently struggling to 'come to grips' with conditions inside the reactor one building and that this would 'probably have an impact' on the implementation of the plan.

And this is all presuming that nothing goes wrong at any of the other potential crisis points.

Last edited by a moderator:
  • #6,748
jim hardy said:
Thanks M&Mand Nuke.

Did you friend have the crane clearance on refueling floor?

One of the articles i saw today showed a generic 'to scale' drawing of shroud standing up in a GE containment, ready to be lifted and set into vessel..
There was barely clearance for crane with shroud sitting in S/D pool which is lower than refueling floor. So i think that's the bottleneck, vertical clearance to overhead crane once it's up to refueling floor.
Looked like there's plenty of clearance to roof but crane is lower than roof by at least enough for people to stand on it and clear the roof beams.

The article was by a services company that makes a special lifting ring for shroud, to accomplish that particular lift - i looked for an hour and can't find it again but will post link if do.

So it was a generic drawing , again not Fukushima . But a nice round roof beam sounds to me more likely to have been made on purpose than accident.

Oops, missed that. From the floor to the bittom of the crane support girders is 24 ft (7.3 m). The shroud would be light enough that the would use the secondary hook on the RB crane. Depending on the size of the lifting ring it might be close. There is also plenty of room on the refueling floor for a purpose built crane to do the lift if the RB crane is too low. The bottom of the roofing girders is about 40 feet above the floor (12.2 m).

Last edited:
  • #6,749
Jim Lagerfeld said:
unable to maintain any stable water level over the core at this point does not inspire confidence.

There is no "core" anymore. That's an anachronism in the case of units 1,2 and 3.

There is a puddle of corium (or several such globs or puddles) which have been cooling for 2 months and which will decline in temperature as time goes on.

  • #6,750
Jim Lagerfeld said:
They are 'strongly emphasizing' that they believe they can still cool the vessel.

unlurk said:
As long as there isn't a problem with re-criticalities the worst is probably over with unit one. They will probablyhave to keep cooling it for the next decade or so.

As long as an earthquake does not shake it up and rearranges the fuel such that re-criticality is possible. All the core may not have collapsed and fallen to the bottom and is cooled by the continues rain from the core spray. Who knows -

(Arnie Gunderson will have a field day analysing this latest news)


Similar threads

Replies
12
Views
49K
Replies
2K
Views
447K
Replies
5
Views
6K
Replies
2
Views
2K
Replies
763
Views
272K
Replies
38
Views
16K
Replies
4
Views
11K
Back
Top
