Homework Help: Organic chem: draw this in line angle structure

  1. Sep 24, 2017 #1
    1. The problem statement, all variables and given/known data
    Draw this formula in line angle structure. CH3CH2OC(O)CH2CC(CH2)3CH(CN)CHO.

    2. Relevant equations
    None.

    3. The attempt at a solution

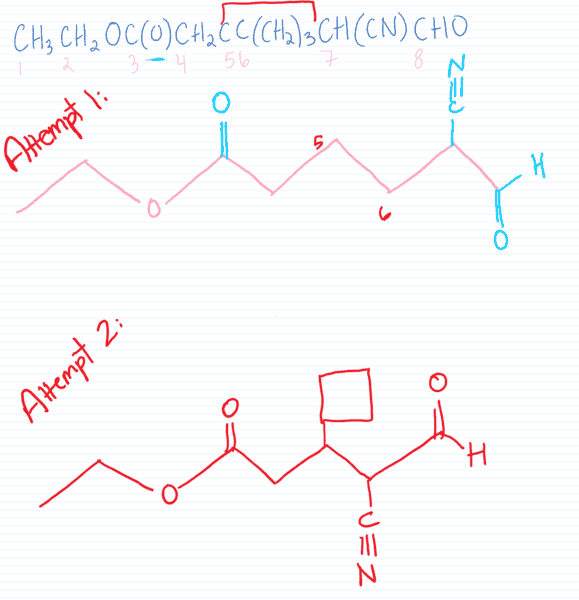

    I'm confused with the CC(CH2)3 part of the condensed formula. I knew I got it wrong the first time I drew it because I couldn't just tag three methyl groups to carbon 7. The only way I think I can do that is by adding a cyclobutanyl group! But, I'm afraid that might be misrepresenting the given formula. I think a cyclobutanyl group included would have the condensed formula written as CH3CH2OC(O)CH2C(C(CH2)3)CH(CN)CHO.

  2. jcsd
  3. Sep 24, 2017 #2

    Borek

    User Avatar

    Staff: Mentor

    (CH2)3 is just three -CH2- groups in line.

  4. Sep 24, 2017 #3

    Dr Transport

    User Avatar
    Science Advisor
    Gold Member

    if memory serves me correctly, the [itex] CC [/itex] is actually [itex] C=C[/itex] and the [itex] (CH_2)_3[/itex] is
    [itex] CH_2CH_2CH_2[/itex]

  5. Sep 24, 2017 #4

    Borek

    User Avatar

    Staff: Mentor

    Close, but no, it is not a double bond.

  6. Sep 24, 2017 #5

    Dr Transport

    User Avatar
    Science Advisor
    Gold Member

    memory failed me.....

  7. Sep 24, 2017 #6

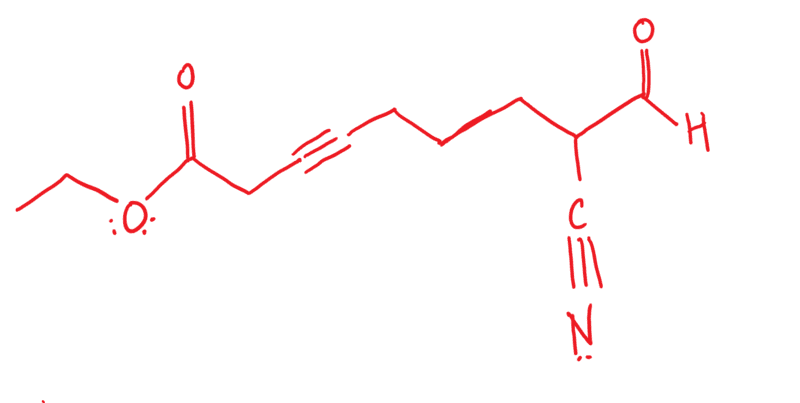

    Thanks for your help! I think I got it now!

  8. Sep 25, 2017 #7

    Borek

    User Avatar

    Staff: Mentor

    Yes, looks like you are right.

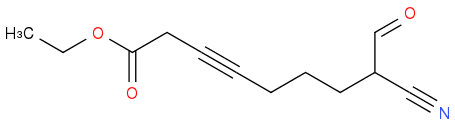

    @Dr Transport - you were close, it was just [itex]C\equiv C[/itex], not [itex]C=C[/itex].

  9. Sep 25, 2017 #8

    Dr Transport

    User Avatar
    Science Advisor
    Gold Member

    dorked by two hydrogens.....
