Question about the Microscopic Model of Current

  • Thread starter Thread starter member 731016
  • Start date Start date
  • Tags Tags
    Current Model
AI Thread Summary
A uniform conductor is defined as one where the conductance remains constant throughout its length, typically represented as a cylindrical shape. In contrast, a non-uniform conductor has varying conductance at different points, which complicates calculations and analyses of current flow. The discussion highlights the importance of uniformity in simplifying the understanding of electrical properties. The lack of clear definitions in textbooks regarding these terms leads to confusion among learners. Understanding these concepts is crucial for grasping the fundamentals of electrical conduction.
member 731016
Homework Statement
Please see below
Relevant Equations
Please see below
Why do they say uniform conductor?

Many thanks!


Attachments

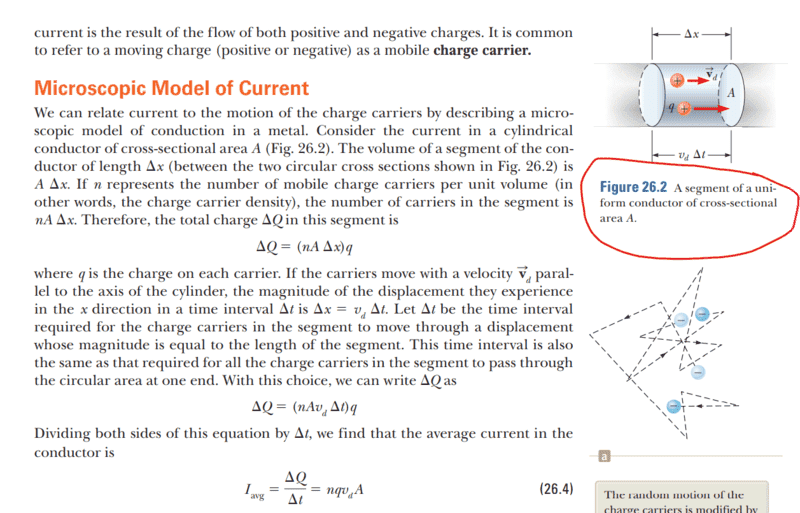

  • 1670823852907.png
    62.8 KB · Views: 113
Physics news on Phys.org
Because a non-uniform conductor would significantly complicate things.

  • Like
Likes member 731016
Orodruin said:
Because a non-uniform conductor would significantly complicate things.
Thanks for your reply @Orodruin !

What's a non-uniform conductor? The textbook does not seem to define these 'uniform' or 'non-uniform' conductors.

Am I correct to say that a uniform conductor is cylindrical, while a non-uniform conductor can have any geometry as long as it is open at both ends.

Many thanks,
Callum

Orodruin said:
Because a non-uniform conductor would significantly complicate things.
Thanks for your reply @Orodruin ! How would a non-uniform conductor significantly complicate thing?

Many thanks!

Callumnc1 said:
What's a non-uniform conductor?
One in which the conductance varies from place to place within it.

  • Like
Likes member 731016
haruspex said:
One in which the conductance varies from place to place within it.
Thank you @haruspex !

Kindly see the attached pdf. My attempt to solve it, is in it. I'm wondering if my solution is right. My idea is this: At any point of time, the ball may be assumed to be at an incline which is at an angle of θ(kindly see both the pics in the pdf file). The value of θ will continuously change and so will the value of friction. I'm not able to figure out, why my solution is wrong, if it is wrong .
