Question in reflection and transmission at oblique incidence.

AI Thread Summary
The discussion revolves around the representation of electromagnetic waves in Griffiths' text, specifically regarding the incident, reflected, and transmitted waves denoted by their respective wave vectors. The user expresses confusion over the notation used for the electric field, questioning why all three wave types are represented as functions of the same positional vector, which seems to imply they are propagating in the same direction. They highlight that while the waves travel in distinct directions, the notation suggests a common spatial reference, which raises concerns about its accuracy. Additionally, the user seeks clarification on why the electric field is labeled as a function of position rather than the specific wave vector direction. The conversation emphasizes the importance of precise notation in understanding wave propagation in different directions.
yungman
Messages
5,741
Reaction score
294
I am reading Griffiths p387. It is my understanding that
\tilde E(\vec r,t)=\hat r E_0 e^{j(\omega t-kr)}
Where ##\vec r =\hat x x+\hat y y+ \hat z z## is the positional vector from the origin to the observation point ( x,y,z).
\Rightarrow\;\tilde E(\vec r,t)=\hat r E_0 e^{-jkr}\;=\;\left(\frac {\hat x x+\hat y y+ \hat z z}{\sqrt{x^2+y^2+z^2}}\right) E_0e^{j[-(\hat x k_x+\hat y k_y+\hat z k_z)\cdot(\hat x x+\hat y y+\hat z z)]}\;=\; \left(\frac {\hat x x+\hat y y+ \hat z z}{\sqrt{x^2+y^2+z^2}}\right) E_0e^{-j[( x k_x+ y k_y+z k_z)]}


In Griffiths, he let the incident TEM wave travels in ##\vec k_I## direction. So he let
\vec E_I(\vec r,t)= \vec E_{0I} e^{j(\omega t - \vec k_I\cdot \vec r)},\;\vec E_R(\vec r,t)= \vec E_{0R} e^{j(\omega t - \vec k_R\cdot \vec r)},\;\vec E_T(\vec r,t)= \vec E_{0T} e^{j(\omega t - \vec k_T\cdot \vec r)},\;
To expand one out:
\vec E_I(\vec r,t)= \vec E_{0I} e^{j(\omega t - \vec k_I\cdot \vec r)}=\hat x E_{0I}e^{j[\omega t - (xk_{Ix}+yk_{Iy}+zk_{Iz})]}

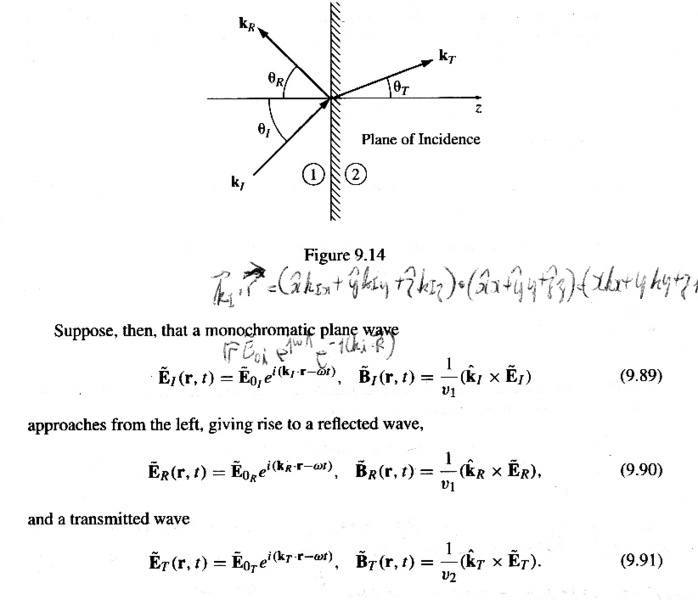

I have a problem with this, as you can see from the scanned page, the direction of the incident, reflected and transmitted wave is in direction of ##\vec k_I,\;\vec k_R\;\hbox { and } \;\vec k_T##. But he gave all three as ##\vec E(\vec r,t)##. This mean all three are in ##\vec r## direction. That is not right.
Later, he actually equated
xk_{Ix}=xk_{Rx}\;\Rightarrow\;k_{Ix}=k_{Rx}
This mean he used the same ##\vec r## in all three, that is questionable. I am not saying the final result is wrong, just the representation is questionable.
Please help.

Thanks


Attachments

  • E&H.jpg
    30.6 KB · Views: 464
Last edited:
Science news on Phys.org
I think I got some of the explanation from Cheng's book that ##e^{\vec k\cdot \vec r}## is just to give ##e^{-jk_xx}e^{-jk_yy}e^{-jk_zz}=e^{-j(k_xx+k_yy+k_zz)}##...which is like ##e^{-jkz}## in z direction.

But I still have a question. It is obvious that in the book, the incident wave is traveling in ##\hat k_I## direction, reflected wave in ##\hat k_R## direction and transmitted wave in ##\hat k_T## direction.

Why this book and other books all call ##\vec E(\vec r, t)## and not ##\vec E(\vec k_I, t)##? The incident wave IS traveling in ##\vec k_I## direction as indicated. Or this is just a general way of saying the direction of propagation has xyz components, not just z?

Last edited:
