What do the labels on electrical components mean?

In summary, the conversation discusses the labeling of parts on the back of circuit boards in electronics. The known labels are R for resistor, C for capacitor, L for inductor, D for diode, Q for transistor, and U for integrated circuits. The speaker is unsure of the label M1 and is wondering if it is a MOSFET or a fuse. They later find out that it is indeed a fuse. The speaker also asks for a resource that lists all the component labels.
  • #1
deadrxn24
2
0
Hey,

On the back of the circuit boards in most electronics there are labels for the parts. I know a few of them:

R - Resistor
C - Capacitor
L - Inductor
D - Diode
Q - Transistor (Is this all transistors or just BJTs?)
U - Integrated Circuits

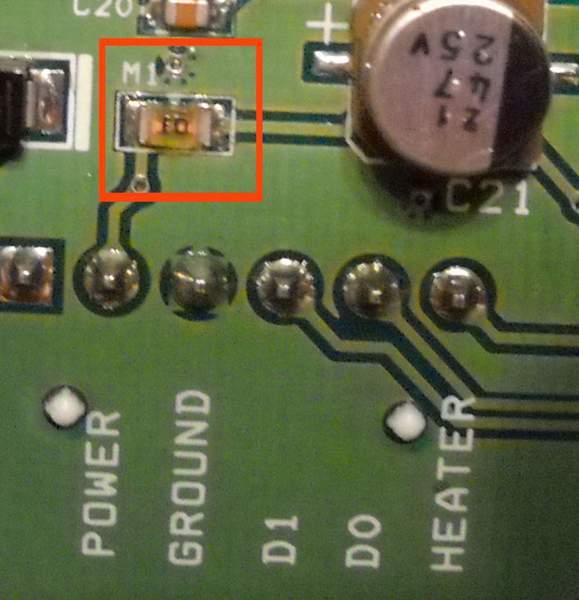

However, there are some that I don't recognize. The particular one I am looking at is labeled M1 on the board, but there is an F0 (either that or E0) on the component (see the picture). We used M for MOSFETs in my EE classes but I am pretty certain that it isn't a MOSFET. I thought this might be a fuse, but I'm not sure.

Thanks In Advance!

Also, if there is a link with the component labels, I would appreciate the resource.


Attachments

  • CompM.jpg
    34.7 KB · Views: 493
Engineering news on Phys.org
  • #2
Answering my own question, it appears that it was a fuse of some sort.


FAQ: What do the labels on electrical components mean?

1. What is an electrical component label?

An electrical component label is a sticker or tag that is attached to an electrical component, such as a wire or circuit board, to provide important information about the component. This information can include the component's name, specifications, safety warnings, and manufacturer information.

2. Why are electrical component labels important?

Electrical component labels are important because they provide crucial information about the component, such as its voltage, current, and temperature ratings, which are necessary for proper installation and operation. They also include safety warnings to prevent accidents and identify the manufacturer for warranty or troubleshooting purposes.

3. How are electrical component labels made?

Electrical component labels are typically made using durable materials, such as vinyl or polyester, and printed with permanent ink or thermal transfer printing. The labels are designed using specialized software and then printed using label printing equipment.

4. Are there any regulations for electrical component labels?

Yes, there are regulations for electrical component labels, depending on the industry and location. In the United States, the National Electrical Code (NEC) requires all electrical components to be labeled with their voltage, current, and temperature ratings. Additionally, there may be specific labeling requirements for certain industries, such as the automotive or aerospace industries.

5. Can electrical component labels be customized?

Yes, electrical component labels can be customized to include specific information or designs. Many manufacturers offer customizable labels that can include company logos, barcodes, or QR codes for easy identification and tracking. However, it's important to ensure that all necessary information and safety warnings are still included on the label.
