Bifurcation Diagram in AUTO

In summary, the conversation is about an ODE and its corresponding system of equations. The speaker introduces two variables and uses a software called AUTO to detect bifurcation. The graph attached represents the results of the bifurcation plot, and the speaker is asking for clarification on the mathematical meaning of the graph and the value of a specific point on it. There is a request to post the graph as an image instead of a PDF file.
  • #1
member 428835
Hi PF

I am given the ODE ##\ddot{\theta} +q\sin\theta+\mu\cos\theta=0##, where I introduce ##x_1 = \theta## and ##x_2=\dot{\theta}## to yield$$
\dot{x_2}=-q\sin x_1-\mu\cos x_1\\
x_2=\dot{x_1}
$$
subject to ##x_2(0)=x_2(1)=0## and ##\int_0^1\sin x_1\, d t = 0##. I then plug this system into the program AUTO, a bifurcation detection software. The bifurcation plot is attached. My question is, what does this graph represent mathematically? What would the value of one point, say 17, represent?

Thanks a ton for your help!


Attachments

  • bifurcation.pdf
    106.8 KB · Views: 273
Last edited by a moderator:
Physics news on Phys.org
  • #2
Can you post the graph directly as an image instead of a pdf? Not everyones browser opens pdf files especially with the issues Adobe has with malware.

  • #3
I'm happy to, but I don't know how to do this?

  • #4

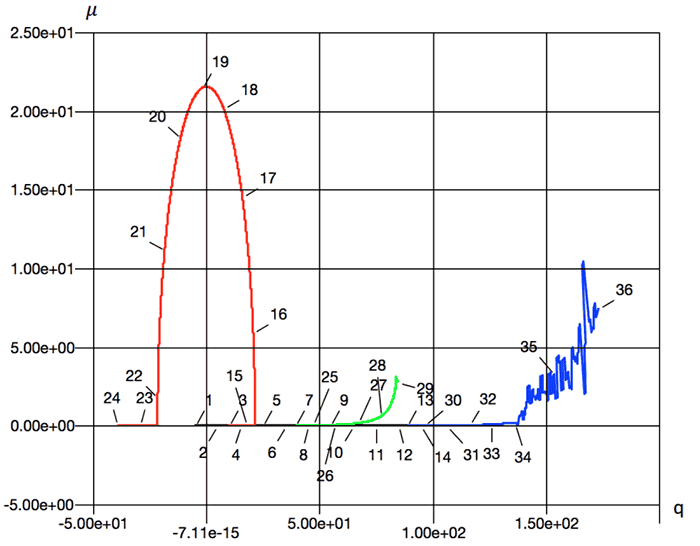

Here


  • Like
Likes member 428835
