Converting linear clamping force to torque Ft/in

AI Thread Summary
To determine the torque applied by the air-powered actuator, the linear clamping force must be converted to torque using the formula Torque = Force x Distance. With the pressure regulator set at 75 psi, the force can be calculated by multiplying the pressure by the area of the actuator's piston. The length of the clamp, 5 inches, serves as the distance in the torque equation. Calculating these values will provide the torque output of the actuator. Accurate measurements and calculations are essential for effective application.
Rkaltz
Messages
1
Reaction score
0

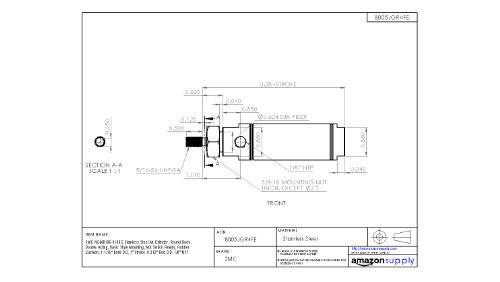

I converted a clutch clamp to an air powered actuator. The clutch was limited to 1Ft/lb of torque. Is their a way to figure out how much torque I'm applying with an actuator? I have the pressure regulator set at 75 psi, the length of the clamp attached to the actuator is 5" x 3/4". Here is a picture of the actuator. Any help with this would be greatly appreciated.
