Hey guy,

I'm working at my school to ID our collection of kinematic models and make signs for explaining them. I have them almost done, but there are a few I can't find in any of the books, can you guys take a look at the attached and linked pictures and see if you can ID them?







Attachments

  • IMG00159-20110104-1705.jpg
    25.2 KB · Views: 379
  • IMG00161-20110104-1705.jpg
    28.6 KB · Views: 395
  • IMG00160-20110104-1705.jpg
    26.3 KB · Views: 403
Engineering news on Phys.org
  1. Not sure, might be able to tell more with a picture of the other side. It involves a lot of mechanical advantage whatever it is.
  2. Hard to say, could be some sort of idler or differential? Where's the other half?

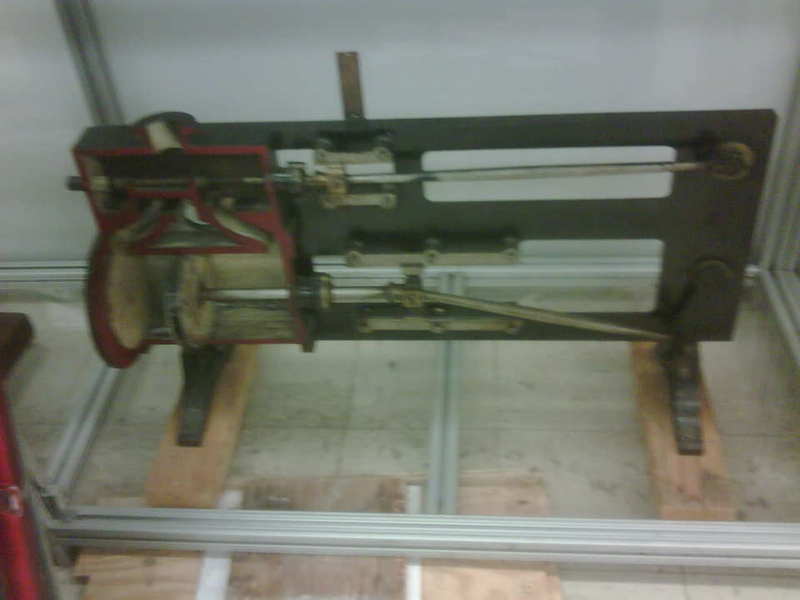

  3. Looks like a steam piston to me, could have been used for any number of things.
  4. Same as above.
  5. I want to say steam piston as well, but the second smaller piston makes me think it's a 2-stage compressor...

For the attached thinmbnails:

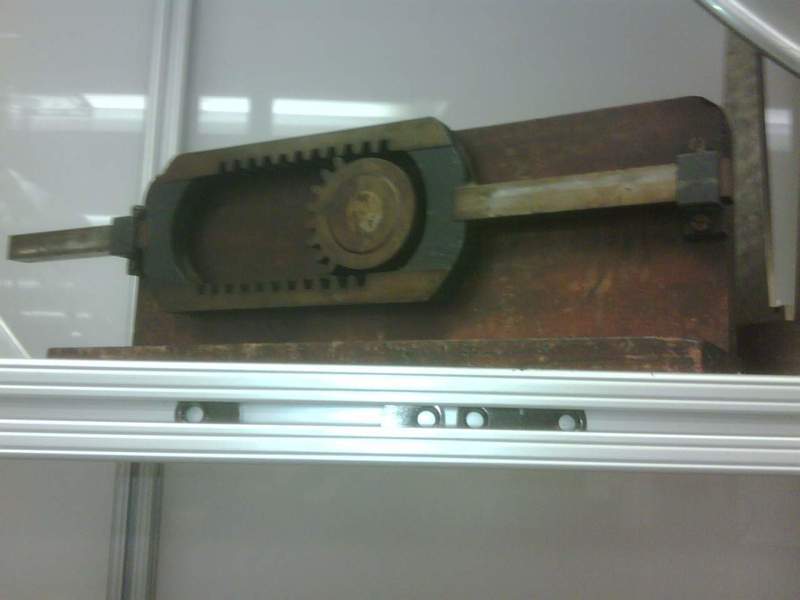

  1. Looks like a reversing rack and pinion system. As the pinion spins around it moves the bar to one side, and then back. Kind of an interesting design.
  2. I guess this is the other side of the piece I was asking for another picture of. Looking at it, I'm not sure what it is... seems like it might be for cutting a helical groove in a circular plate?

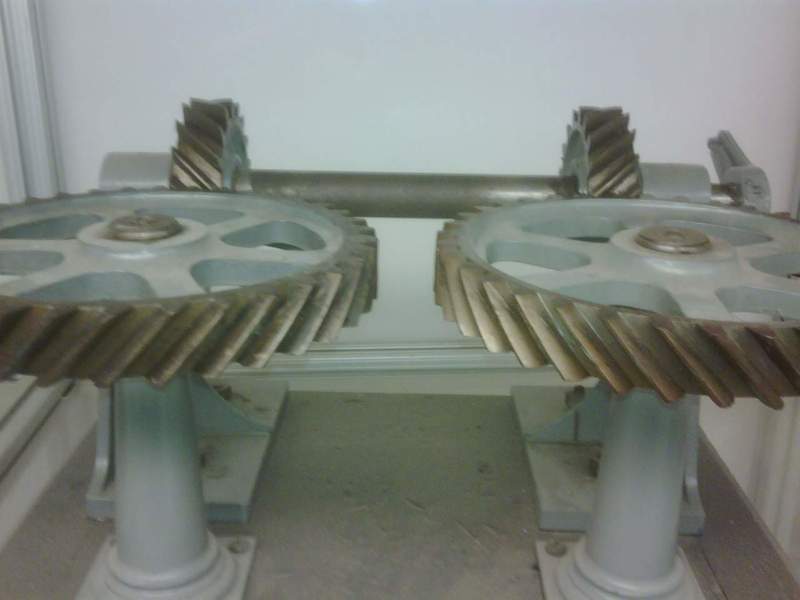

  3. Seems like some kind of large industrial right-angle transmission. What its for is anyone's guess...
