Electrical Circuit Drawing Software

  1. Jul 12, 2012 #1
    Hello,
    I am writing my MSc dissertation, and I want to draw some 3-phase circuits with different cabling configurations (6-wire, 4-wire etc). I need an easy software that can draw the schematics nicely, like the ones found in books. I do not need interactive software (like NI circuit design), just a drawing software. I need it to have pre-installed star-delta connections and of course the main components.

    I would really appreciate your input !

    Regards,

    Nik.

  2. jcsd
  3. Jul 12, 2012 #2

    berkeman

    User Avatar

    Staff: Mentor

    Can you just use Microsoft Visio? I think it has libraries of things like your electrical circuit blocks...

  4. Jul 12, 2012 #3
    Hello berkeman,
    I did try Visio, and I may be getting something wrong, but how can you make star connection with inductors and or loads on the star ?
    Am I asking for too much? I don't know... I just assume that there should be an easier way.

    Regards,

    Nik.

    Edit: Something like that say : http://www.linengineering.com/LinE/_images/Diagram_BLDC17.gif [Broken]

    Last edited by a moderator: May 6, 2017
  5. Jul 13, 2012 #4
    Although hard to find, I tend to use the precursor to Multi sim; Electronics Workbench (used it in High school. Its hard to find (legitimately)).

    There is an online circuit designer 'circuit-lab', although I'm not sure about star-delta configurations on it

    Hope this info helps

    Last edited by a moderator: Jul 13, 2012
  6. Jul 13, 2012 #5
    I've made drawings very similar to that in Visio. Sometimes you need to make your own "components", and that is not necessarily obvious to do. I also have had to avoid making "connections" sometimes because visio's drawing rules put wires where I don't want them. Instead of treating it like a connection/schematic tool, I just treat it like a drawing tool and I get much better results. There could be a better way that I don't know though.

    You can do a lot in Visio:
    http://www.visguy.com/archive-index/visio-art/

    Last edited by a moderator: May 6, 2017
  7. Jul 13, 2012 #6
    Hello cybhunter,

    Thanks for your reply, I did check the circuit lab (https://www.circuitlab.com/editor/), although I am looking at drawing more power electronics rather than electronics, and this editor seems to be mainly for "normal" electronics (I say mainly as I saw transformer symbols). :p

    I am currently downloading the Electronics Workbench that you suggested, but I have the feeling that it is more of a simulation rather than a drawing software.

    Thanks a lot again.

    Regards,

    Nik.

    Last edited by a moderator: Jul 13, 2012
  8. Jul 13, 2012 #7
    Hello Dragon Petter,

    Thanks for your reply !
    I will give it a try creating my own. I bet it is going to be a hassle, but if there is no easier way, I will go with it...

    Thanks again.

    Regards,

    Nik.

  9. Jul 13, 2012 #8

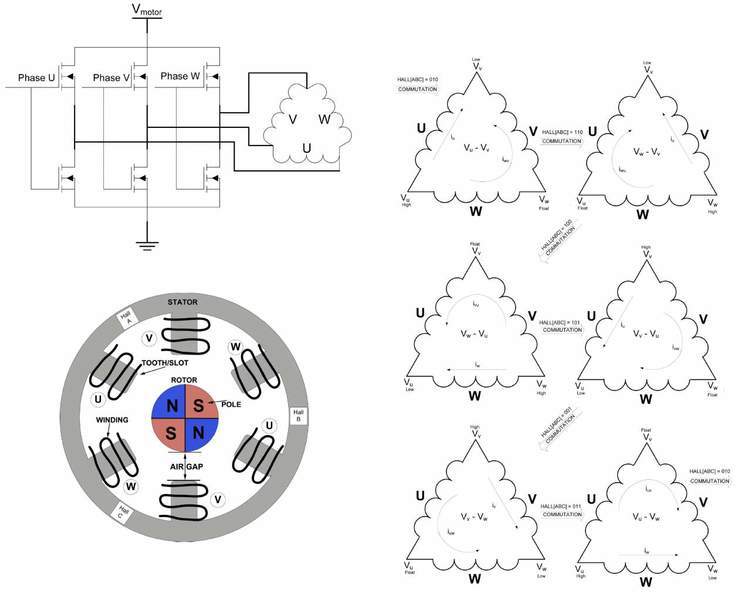

    Yes it was a hassle for me as well. Here are some of the drawings I made in visio . . they look very close to the example you're going for.


    Attached Files:

  10. Jul 13, 2012 #9
    Visio is an unbelievable pain in the *** sometimes. I've used it in the past and still do occasionally because it looks good in the end, but I don't have the heart to recommend it to anyone. I have nightmares about the connector tool in Visio. Is it some kind of evil joke?

  11. Jul 14, 2012 #10
    You can try downloading one of the free simulators like LTSpice from Linear Technology. Easy to draw schematics.

  12. Jul 14, 2012 #11
    A.o.a
    its my first post....!
    Can any one help me in suggesting the best software in "sumilation of circuits.."

  13. Jul 14, 2012 #12
    I dont have any software yet ....please inform me how to download free and from which websites >>>
