- #1
neb1627
- 1
- 0
9 - 2.7(I) - .038(I) = 0
13 - .023(I) + 2.7(I) - 9 = 0

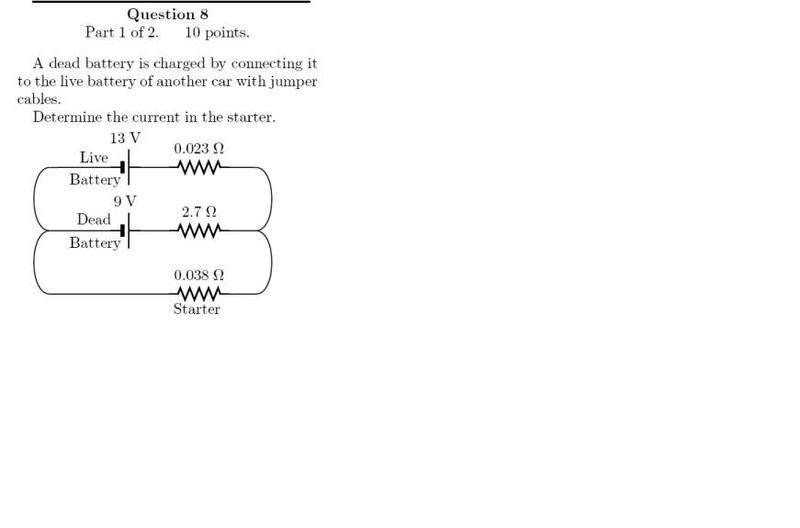

I don't know how the dead battery effects it and how to figure out the
different currents thru the different resistors
The purpose of solving electrical current equations is to accurately calculate and predict the flow of electric current in a given circuit. This is essential in designing and troubleshooting electrical systems.
The basic components of an electrical current equation include voltage (V), resistance (R), and current (I). These components are related through Ohm's Law: V=IR.
In a series circuit, the total resistance (Rtotal) is calculated by adding up the individual resistances (R1, R2, etc.) in the circuit. Rtotal = R1 + R2 + ...
In a series circuit, the components are connected in a single path, while in a parallel circuit, the components are connected in multiple paths. Additionally, the total resistance in a series circuit is equal to the sum of the individual resistances, while in a parallel circuit, the total resistance is less than the smallest individual resistance.
Kirchhoff's Laws (Kirchhoff's Current Law and Kirchhoff's Voltage Law) are used to analyze and solve complex electrical current equations. Kirchhoff's Current Law states that the sum of currents entering a node must equal the sum of currents leaving the node. Kirchhoff's Voltage Law states that the sum of voltage drops in a closed loop must equal the sum of voltage sources in the same loop. These laws can be applied to create a system of equations that can be solved to determine the values of unknown currents and voltages in a circuit.
