Finding the Equation System of a Complex Mechanism: Using Lagrange Formalism

Click For Summary
SUMMARY

The discussion focuses on deriving the equation system for a complex mechanism with 4 degrees of freedom (DoF) using Lagrange Formalism. Participants emphasize the necessity of accurately calculating kinetic energy (T) and potential energy (V) as foundational steps in this process. Errors in these calculations can lead to significant inaccuracies in the resulting equations. Verification of the equations derived through Lagrange Formalism is crucial for ensuring their correctness.

PREREQUISITES
  • Understanding of Lagrange Formalism
  • Knowledge of kinetic energy (T) and potential energy (V) calculations
  • Familiarity with mechanisms and degrees of freedom (DoF)
  • Basic proficiency in mathematical modeling
NEXT STEPS
  • Study the principles of Lagrange Formalism in detail
  • Learn how to derive kinetic energy (T) and potential energy (V) for mechanical systems
  • Explore common errors in Lagrangian mechanics and how to avoid them
  • Practice verifying equations derived from Lagrange Formalism with example problems
USEFUL FOR

Mechanical engineers, students studying dynamics, and researchers involved in modeling complex mechanical systems will benefit from this discussion.

Nagui
Messages
1
Reaction score
3
Moved from a technical forum, so homework template missing
Summary:: equation system of complex mechanism need to be done. Lagrange Formalism could be helpfull to do it but small errors could all destroy ..

Hi everyone,

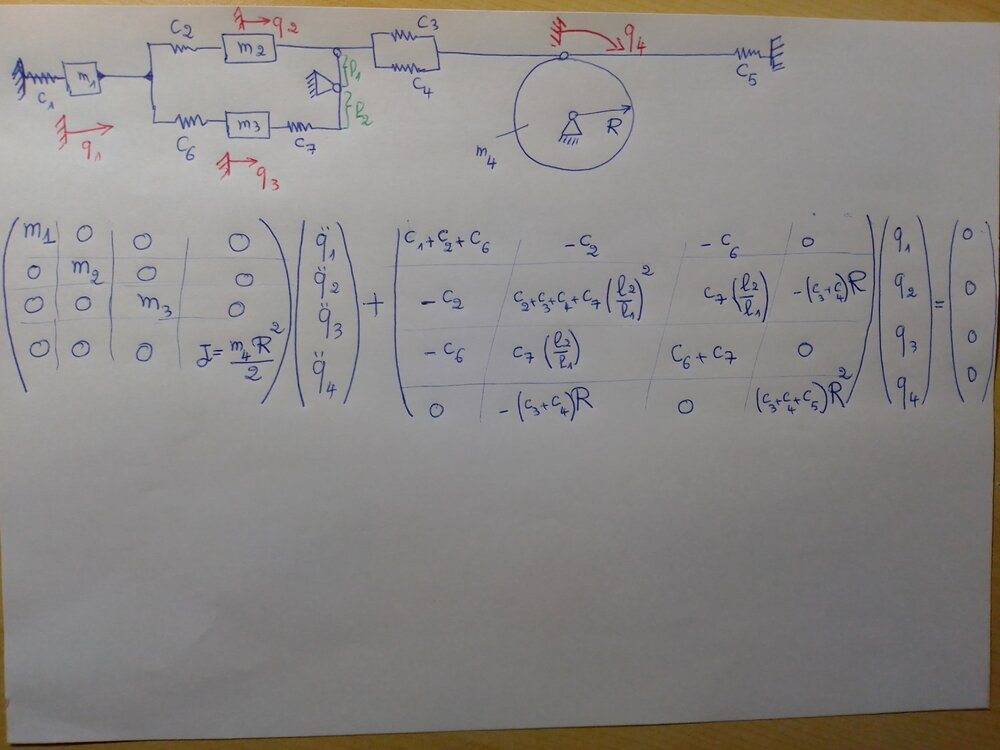

I tried to find the equation system of the joined Mechanism (4 DoF). I think there is a mistake but I am not sure where is it . I have used the Lagrange Formalism to determine the equations. Can anybody please help me with the verification, if it is correct . Thank you very much for your help :)

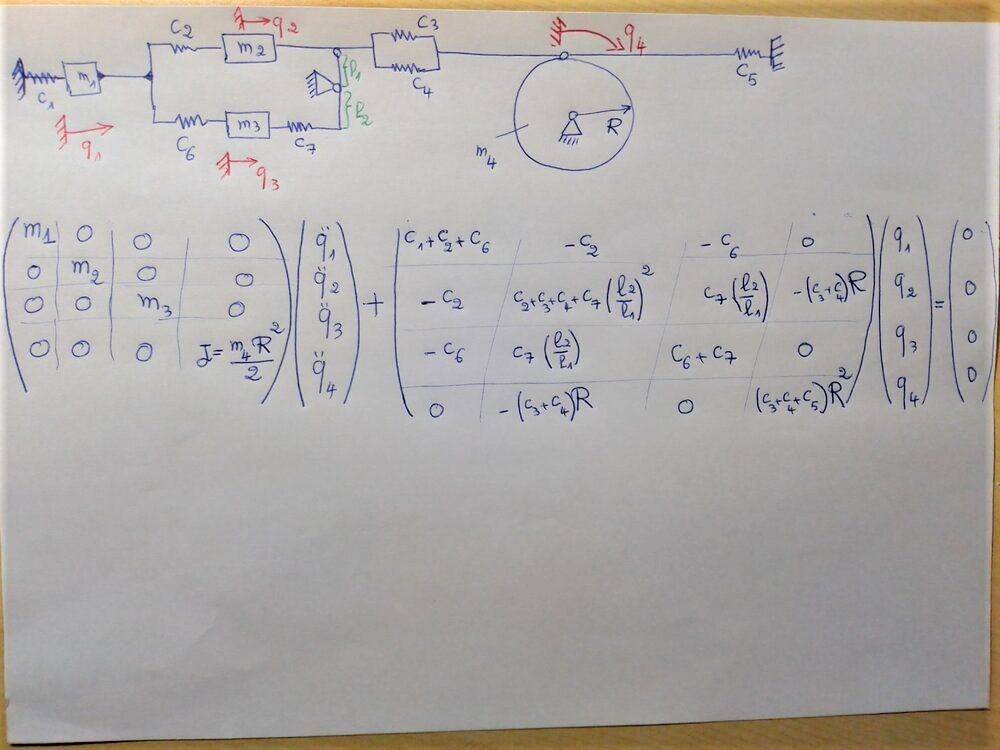

Brighten this.jpg


Attachments

  • IMG_20201111_011535.jpg
    57.9 KB · Views: 194
Last edited by a moderator:
  • Like
Likes   Reactions: Delta2
Physics news on Phys.org
If you intent to use Lagrange, you should begin by writing kinetic energy T and potential energy V. I don't see those in your work.
