MATLAB Guidance for strength of materials in matlab.

AI Thread Summary
The discussion focuses on creating bending moment and shear force diagrams for a beam using MATLAB. Key requirements include visualizing the beam structure, applying a distributed load, a single force, and a single moment. To achieve this, understanding specific MATLAB topics is essential, such as plotting functions, handling arrays, and utilizing built-in functions for engineering calculations. Familiarity with graphical representation in MATLAB will also be necessary to replicate the beam diagram as shown in the reference image.
mech-eng
Messages
825
Reaction score
13
Hi, all I have to do a project but I need some guidance. I have to make MATLAB draw bending
moment and shear force diagrams of a beam which have to be loaded with a distributed load,

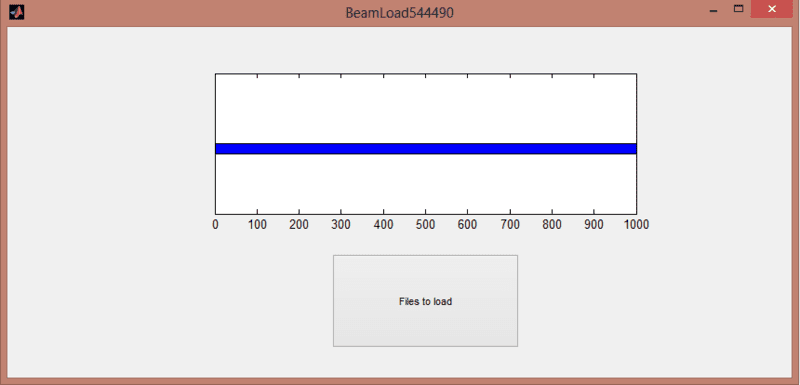

a single force, and a single moment. First I have to make MATLAB draw a beam like in the picture.


Attachments

  • beam.png
    4.6 KB · Views: 799
Physics news on Phys.org

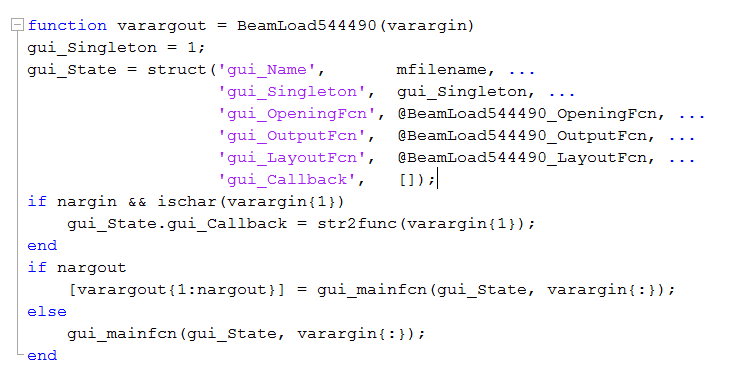

I also need to understand codes in the picture. For this what topics of MATLAB should I study.


Attachments

  • codes.png
    7.9 KB · Views: 893
