Help with Statics: Failing to See Force Fbc's Angle

  • Thread starter Thread starter greekniko
  • Start date Start date
  • Tags Tags
    Statics
AI Thread Summary
The discussion revolves around understanding the angle of force Fbc in statics problems. The user is struggling to see why Fbc is applied at an angle when summing moments around point A, specifically how it relates to the multiplication by 5/13. Clarification is sought on the calculation of moments at a section passing through point E. The importance of visualizing forces and their angles in statics is emphasized for accurate problem-solving. Understanding these concepts is crucial for mastering statics.
greekniko
Messages
1
Reaction score
0

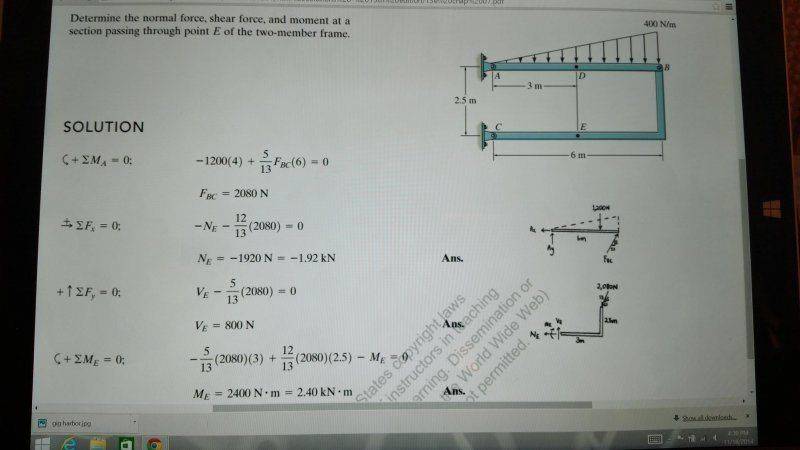

I'm sort of self-teaching statics. Failing to see why when they sum moments around A, the force Fbc is coming in at an angle (and hence being multiplied by the 5/13). Can someone please clarify?


Attachments

  • statics1.jpg
    34.5 KB · Views: 478
Engineering news on Phys.org
Welcome to PF;
The question asks to calculate the moments etc "at a section passing through point E".
