Homework Statement


[/B]

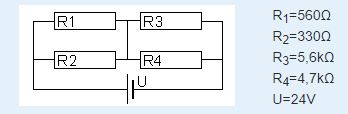

I don't know how to simplify this circuit.

Homework Equations


[/B]
V=IR

The Attempt at a Solution


[/B]

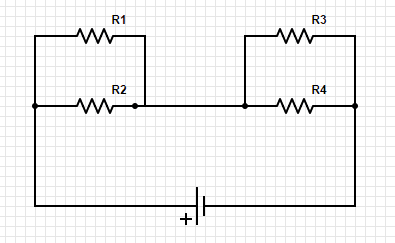

I thought of this, but I don't know if it's correct, could you help me please?


Physics news on Phys.org
Yes, that's a good step. You'll need to add additional Relevant Equations... How do you combine resistors that are in series, and resistors that are in parallel?

Ahh thanks I was not sure if that was the right step, I think I can do the rest now. Thanks again.
