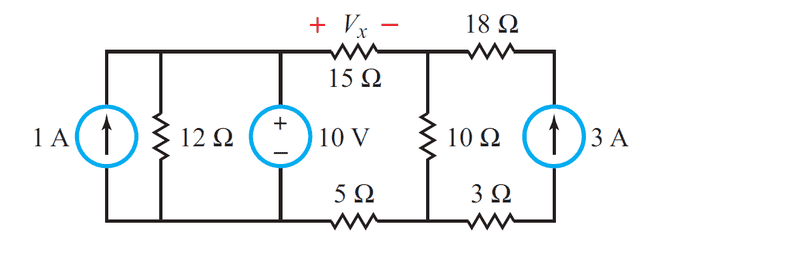

Apply the source-superposition method to the circuit below to determine:
(a) Vx’, the component of Vx due to the 1 A current source alone.
(b) Vx’’, the component of Vx due to the 10 V voltage source alone.
(c) Vx’’’ , the component of Vx due to the 3 A current source alone.
(d) The total voltage Vx = Vx’+ Vx’’+ Vx’’’

Homework Equations





The Attempt at a Solution


Hello,

Just want to check if I did this correctly. My solutions manual privileges have been taken away from me !


Attachments

  • 3.2.png
    9.6 KB · Views: 445
  • 3.2 attempt 1.pdf
    231.2 KB · Views: 298
Physics news on Phys.org
  • #2
Looks good to me.
