What is the temperature dependence of the NIRCam sensor's responsivity?

Click For Summary
SUMMARY

The NIRCam instrument on the James Webb Space Telescope (JWST) utilizes ten 2K × 2K HgCdTe detectors, which are sensitive to infrared photons. The discussion centers on the temperature dependence of the NIRCam sensor's responsivity, particularly regarding the detection of 3.5 micron photons emitted from objects at temperatures slightly below or above the sensor's operating temperature of 300K. The participants emphasize the implications of the 2nd Law of Thermodynamics on the detection capabilities of the sensor, questioning how a 300K sensor can detect photons from a 299K object. The conversation highlights the need for current responsivity charts for NIRCam sensors at varying temperatures to clarify these detection limits.

PREREQUISITES
  • Understanding of HgCdTe detector technology
  • Familiarity with the principles of thermodynamics, particularly the 2nd Law
  • Knowledge of infrared photon detection mechanisms
  • Experience with quantum efficiency in photodiodes
NEXT STEPS
  • Research the current responsivity of NIRCam sensors at various temperatures
  • Study the principles of quantum efficiency in HgCdTe detectors
  • Explore the implications of the Fluctuation-Dissipation theorem in thermal detection
  • Investigate the thermal noise characteristics of infrared imaging systems
USEFUL FOR

Researchers, engineers, and scientists involved in infrared imaging, thermal detection, and the design of astronomical instruments, particularly those working with the James Webb Space Telescope and similar technologies.

  • #61
In this one, the dark current decreases as the forward bias voltage increases above 0v:


Fig. 2. Dark current-bias characteristics of the MWIR MCT detector at (a) 77 K

https://opg.optica.org/oe/fulltext.cfm?uri=oe-28-16-23660&id=433783

Astronomy news on Phys.org
  • #62
Devin-M said:
In this one, the dark current decreases as the forward bias voltage increases above 0v:

[...]

https://opg.optica.org/oe/fulltext.cfm?uri=oe-28-16-23660&id=433783

C'mon, @Devin-M. Please. The paper discusses the discrepancies in the text and addresses some of the problems such as the imperfection of the cold shield. I mean, it's right there.

You've been repeating a lot of similar figures. Possible non-ideal behaviors and measurement errors have already been addressed several posts back by myself and others.

I'm tempted to repeat some of those points on the subject. Can you guess which points I'm tempted to repeat?

  • Like
Likes   Reactions: russ_watters
  • #64
Devin-M said:
at 110k, the dark current decreases as the bias voltage increases just above 0v…

How do you interpret this data (what do you think it implies)?

For myself, the first thing I would check is pixelation, I'd ask the presenter if they could show the table of raw data to make sure its not just that (pixelation). Its a little hard to say for sure, but I think the 180K line is showing the same thing, and to my eye, one can't tell about the other temp lines, because they all overlap too much around 0V bias.

  • #65
  • #66
@Devin-M, let me point out something else that you may be running into besides measurement errors and non-deal aspects of circuit setups.

The emf point at which a photodetector exhibits zero [dark] current is not necessarily at exactly 0 Volts. It's highly dependent upon the circuit in which it is placed. This is due to the fact that photodetectors are non-linear devices and have junction emfs. The P-doped and N-doped material in the photodetectors act as dissimilar metals (or in this case, dissimilar semiconductors) and a residual emf maybe present across its terminals, even though no current flows.

Certainly, if the photodetector is by itself, not connected to anything, this emf will exist. It can also exist if placed in a circuit, particularly when other non-linear devices, such as a diode, are wired in parallel.

As an analogy, this is similar to how you wire two batteries in parallel, and no current will flow between them. Don't take this analogy too far though -- batteries have significant energy stored within them, but diodes do not. (And photodetectors do not contain significant stored energy when they and their sourroundings are all at the same temperature.)

So the idea that the voltage across the terminals of a photodetector is not precisely 0 when the minimum current point is reached, should not come as a complete surprise. Again though, it all depends on the circuit details.

-------------------

But let me repeat my main point again. If you place a photodetector in a passive circuit, and the photodetector, the other circuit components, and the surroundings are all at the same temperature (that also means no external light sources -- only the thermal background within the dark enclosure), the current through the photodetector will be zero. A this point, the voltage across the terminals of the photodetector might not be exactly 0, but I can guarantee you that the steady-state, DC current through the photodetector will be 0.

Last edited:
  • #67
@Devin-M To circle back on post #64, your post #65 is clearly not pixelation around the zero point, my question is answered on that.

  • #71
Sorry I was responding to this comment:
collinsmark said:
You can assume though that if the sensor was actually placed in a passive circuit, such that the photodetector, other components in the circuit, its enclosure, and everything else in the vicinity is all at the same temperature, the dark current density would measure 0.

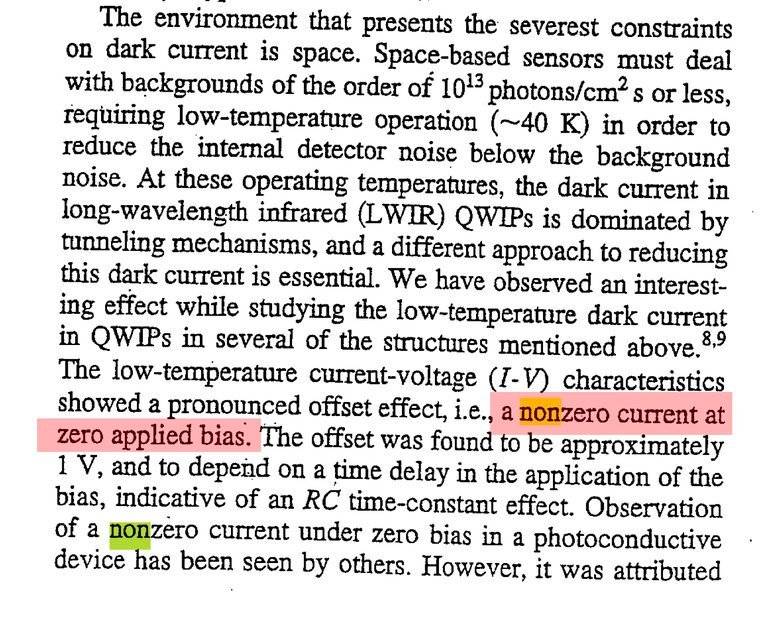

I was wondering what powers the dark current measured in the paper when there is zero bias voltage, in the dark, and the sensor and surroundings at the same temperature? From Ohm's law we have P=I^2R
