Engineering What Technique Should Be Used to Solve a Complex DC Circuit?

AI Thread Summary
To solve a complex DC circuit, the recommended technique is nodal analysis, particularly when there are no voltage sources present. One participant suggests using three nodes for simplification. Another mentions issues with an attachment labeled "Pending Approval," indicating a need for clearer communication. The discussion emphasizes the importance of selecting the right analysis method for effective problem-solving. Overall, nodal analysis is highlighted as the easiest approach for this circuit scenario.
shaiqbashir
Messages
103
Reaction score
0
Hi Guys!

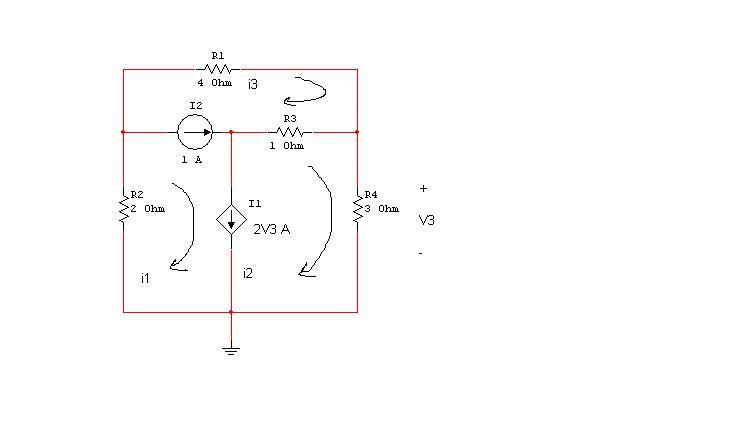

well! i have made my all efforts in solving this circuit please help me.
WHat technique should i use?
Super mesh? or what?
Plz help me


Attachments

  • mesh_prb.JPG
    11.3 KB · Views: 493
Last edited:
Physics news on Phys.org
I can't open your attachment -- it's labeled "Pending Approval", whatever that means. Maybe try attaching it again...

I would just use Nodal analysis. It seems to be the easiest since there are no voltage sources in the way. I would go with 3 nodes.

this problem is looking like déjà vu...
