Determining the flow losses through a pipe with friction

AI Thread Summary
Determining flow losses through a pipe with friction involves understanding the impact of Mach number as it approaches unity, which indicates choked flow. Once chocking occurs, quantifying frictional losses requires a specific flow model, such as the Fanno flow model. The discussion highlights the importance of accurate friction factor estimation, which can be derived from empirical surface roughness data. While there are extensive resources available for estimating friction losses, the level of precision needed can vary based on whether the analysis is academic or practical. Understanding the flow model post-Mach 1 is crucial for accurate calculations in compressible flow scenarios.
Johan85
Messages
2
Reaction score
0
Hi everyone,

I am trying to determine the flow losses through a pipe with friction. I understand that the Mach number increases through the pipe to unity and that the flow cannot increase when unity is reached. If the pipe is longer than the hypothetical chocking length, what would be the best way to quantify the frictional losses after chocking is reached?

Thank you so much in advance, I am very rusty when it comes to compressible flow.

Engineering news on Phys.org
Is this academic or practical? I.e. how precise of a measurement are you looking for. Pipes have different friction factors, and it is quite easy to estimate the friction losses based on capacity and pipe ID. Tons of literature and tables available for that. If it is an academic study, I'm sorry but I can't answer that right now as that is more involved than I would like to get into haha.

Travis_King,

Thanks for the reply. I am actually quite confident with the surface roughness used to determine the friction factor, since I determined that empirically. I just want to know what flow model is used after the flow reaches mach 1 when using the Fanno flow model.

Regards


Thread 'Race car suspension Class'

Posted June 2024 - 15 years after starting this class. I have learned a whole lot. To get to the short course on making your stock car, late model, hobby stock E-mod handle, look at the index below. Read all posts on Roll Center, Jacking effect and Why does car drive straight to the wall when I gas it? Also read You really have two race cars. This will cover 90% of problems you have. Simply put, the car pushes going in and is loose coming out. You do not have enuff downforce on the right...
View full post »

Thread 'Cantilever help'

I'm trying to decide what size and type of galvanized steel I need for 2 cantilever extensions. The cantilever is 5 ft. The space between the two cantilever arms is a 17 ft Gap the center 7 ft of the 17 ft Gap we'll need to Bear approximately 17,000 lb spread evenly from the front of the cantilever to the back of the cantilever over 5 ft. I will put support beams across these cantilever arms to support the load evenly
View full post »
Thread 'Physics of Stretch: What pressure does a band apply on a cylinder?'

Thread 'Physics of Stretch: What pressure does a band apply on a cylinder?'

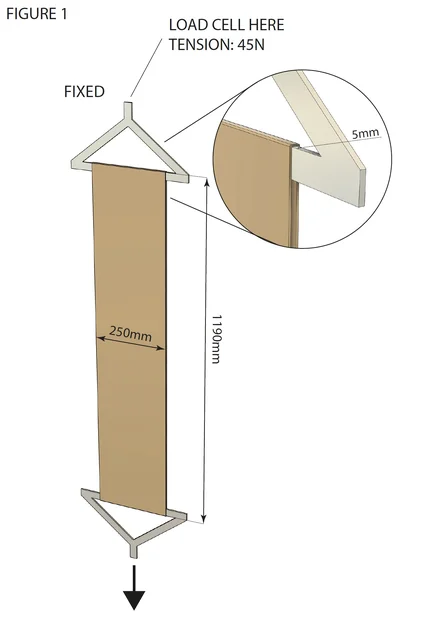

Scenario 1 (figure 1) A continuous loop of elastic material is stretched around two metal bars. The top bar is attached to a load cell that reads force. The lower bar can be moved downwards to stretch the elastic material. The lower bar is moved downwards until the two bars are 1190mm apart, stretching the elastic material. The bars are 5mm thick, so the total internal loop length is 1200mm (1190mm + 5mm + 5mm). At this level of stretch, the load cell reads 45N tensile force. Key numbers...
