SUMMARY

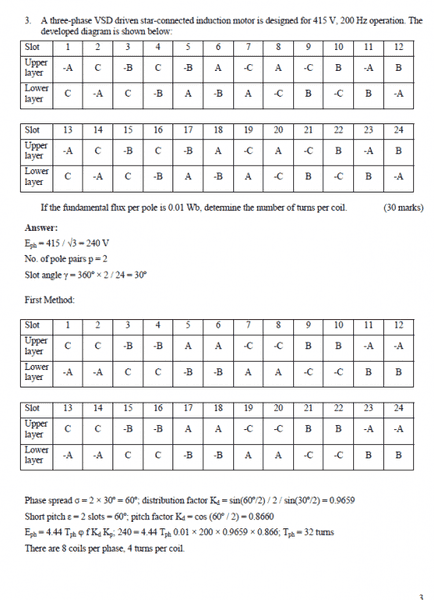

The discussion focuses on determining the short pitch and pole pairs of electric motors, specifically using the formulae p=nsf and e.m.f=4.44TφfKdKp. The user expresses confusion regarding why the pole pair is equal to 2 and seeks clarification on how to derive these values from the developed diagram. Key insights include the importance of understanding phase spread, which is set at 60 degrees, and the pattern A-CB-AC-B for narrow spread configurations.
PREREQUISITES
- Understanding of electric motor terminology, including pole pairs and short pitch.
- Familiarity with the formulae related to motor calculations, such as e.m.f and winding factor.
- Knowledge of phase spread concepts in motor design.
- Ability to interpret motor diagrams and coil pitch definitions.
NEXT STEPS
- Research "coil pitch" and its impact on motor performance using resources like the provided Davidson Sales document.
- Study the "winding factor" and its significance in electric motor design on Wikipedia.
- Explore the relationship between phase spread and motor efficiency in electric motors.
- Learn how to analyze motor diagrams to extract key parameters like pole pairs and short pitch.
USEFUL FOR
Electrical engineers, motor design specialists, and students studying electric motor theory will benefit from this discussion, particularly those focused on optimizing motor performance and understanding winding configurations.
