Integrating Multiple Young's Moduli in Composite Beam Design: Tips and Tricks

AI Thread Summary
Integrating multiple Young's Moduli in composite beam design requires linking them effectively to the Bending Moment. A suggested approach is to convert the entire cross-section into a single equivalent material to simplify calculations. Reference materials, such as lecture slides on composite beam bending, can provide valuable insights. Additionally, reviewing similar discussions in engineering forums may offer practical solutions. Understanding these strategies is crucial for effective composite beam analysis.
AdamMcParland
Messages
3
Reaction score
0

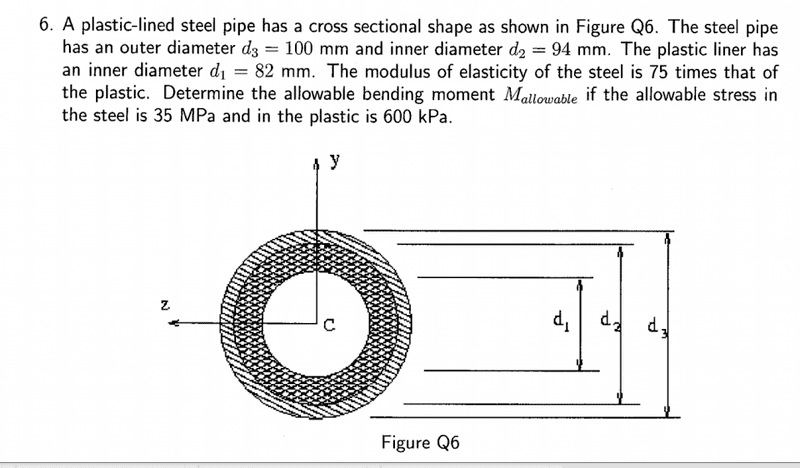

Having trouble figuring out how to link the two Young's Moduli to the Bending Moment, any suggestions?

Engineering news on Phys.org
thank, you! Trick seems to be converting the whole of the cross section into one material

AdamMcParland said:
thank, you! Trick seems to be converting the whole of the cross section into one material
Here is a copy of an exchange about a similar situation in another engineering forum.

In your case, there are only two materials to deal with.

See the attached file.


Attachments

  • Like
Likes AdamMcParland
