Is Thevenin's Theorem Applicable to Analyze Intensity Between Points A and B?

AI Thread Summary
The discussion centers on the applicability of Thevenin's Theorem to analyze current intensity between points A and B in a circuit. Participants note that the original poster's image of the circuit is broken and request a proper upload to facilitate assistance. There is a mention of a current source at Node A lacking a specified value, which may be critical for analysis. Forum members emphasize the need for the poster to provide detailed workings of their attempted solution to receive meaningful help. Clarity on circuit values and configurations is essential for accurate application of Thevenin's Theorem.
Gabi7657
Messages
2
Reaction score
0

Homework Statement

1. Homework Statement [/B]

https://ibb.co/b263Pw
Circuit 1.JPG


Homework Equations


[/B]
Use thevenin method to find the intensity between A and B

The Attempt at a Solution


Well I tried a easier method but I just can't find the same answer[/B]


Attachments

  • Circuit 1.JPG
    Circuit 1.JPG
    26.9 KB · Views: 732
Last edited by a moderator:
Physics news on Phys.org
Welcome to Physics Forums!

Your image is broken. Try to UPLOAD it and attach it to your post.

You'll have to show the details of what you tried if we're going to be able to comment on it and help you.

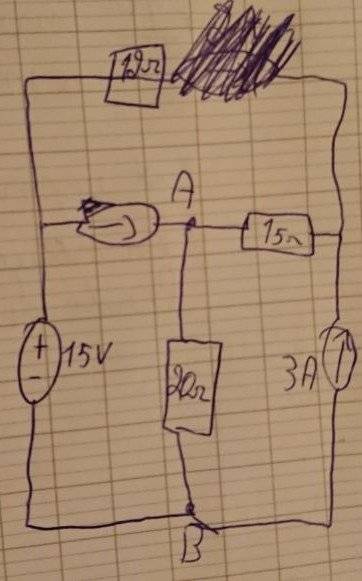

Edit: I've inserted a local copy of the image at your link. It looks like there's a current source attached to Node A which doesn't have a value specified. Is this an oversight?

You still must show us the details of your attempt before help can be given.

Last edited:
gneill said:
Welcome to Physics Forums!

Your image is broken. Try to UPLOAD it and attach it to your post.

You'll have to show the details of what you tried if we're going to be able to comment on it and help you.

Edit: I've inserted a local copy of the image at your link. It looks like there's a current source attached to Node A which doesn't have a value specified. Is this an oversight?

You still must show us the details of your attempt before help can be given.
What kind of details the circuit is there and all of its values

Gabi7657 said:
What kind of details the circuit is there and all of its values
You said:
Gabi7657 said:
Well I tried a easier method but I just can't find the same answer
Show us the details of the analysis that you say that you tried.
