Mutual Inductive Coupling in Power Distribution Systems

AI Thread Summary
Mutual inductance coupling between adjacent conductors in a 3-phase power distribution system can be modeled as additional series impedance on each phase rather than as parallel impedance between the lines. The discussion highlights that the lines themselves act as inductors, and capacitors may be distributed between them for accurate modeling. The impact of mutual inductance is generally minimal at standard 50/60 Hz power frequencies. The accuracy of modeling also depends on the spacing between conductors. Understanding these principles is crucial for effective power distribution system design.
splitendz
Messages
32
Reaction score
0

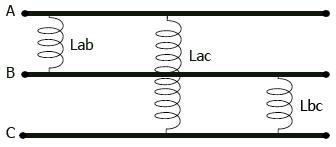

Hi, I’ve just been reading about the mutual inductance coupling that can exist between adjacent conductors in a 3-phase power distribution system. I’m hoping to clear something up in my mind, if we want to model the imposed mutual impedance, is it represented as impedance between the lines (parallel) or can we represent it as additional series impedance on each phase?

Would my attached drawing be considered accurate assuming unequal spacing between conductors?

Thanks :) :)


Attachments

  • Mutual Inductance Diagram.JPG
    Mutual Inductance Diagram.JPG
    6.2 KB · Views: 579
Engineering news on Phys.org
No.
In general, the lines themselves are inductors.
You would distribute a series of capacitors between them.

Normally, you would find this kind of info associated with antenna feed lines.
The effect is small at the normal 50/60 hz electrical power frequencies.
