Need tutorial for magneto static simulation of C-core (Imag)

Whn5XKXHLOiH8QfA-ojwCgIn summary, a new member of a forum is looking for tutorials on magnetostatic simulation of C-core for a project they are working on. They are seeking recommendations for simulation software and have also found relevant information through a Google search.
  • #1
Sreedevi
1
0
Hello all,

I am a new member of this forum,

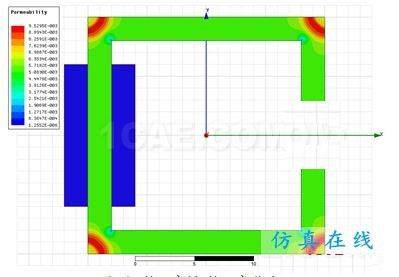

I would like to know where can i find the detailed tutorial of magneto static simulation of C-core. I am in the middle of one project and for further move I need the magneto static simulation of C-core. The image is attached.


Attachments

  • Capture.JPG
    14.2 KB · Views: 567
Engineering news on Phys.org
  • #2
Sreedevi said:
Hello all,

I am a new member of this forum,
I would like to know where can i find the detailed tutorial of magneto static simulation of C-core. I am in the middle of one project and for further move I need the magneto static simulation of C-core. The image is attached.
Welcome to the PF. :smile:

What simulation software do you have available? Do you have access to COMSOL or ANSYS? Even if you don't have those software packages, you may be able to view their tutorials for such simulations on their websites...

Last edited:

1. What is a C-core and why is it used in magneto static simulations?

A C-core is a type of magnetic core that is commonly used in magneto static simulations because of its simple and efficient design. It consists of two parallel magnetic poles connected by a closed magnetic circuit, which allows for a strong and uniform magnetic field to be generated.

2. What are the key parameters and variables needed to simulate a C-core in magneto statics?

The key parameters and variables needed for a C-core simulation include the material properties of the core (such as permeability and saturation magnetization), the geometry of the core (such as dimensions and number of turns), and the external conditions (such as applied voltage or current).

3. How do I set up a magneto static simulation for a C-core?

To set up a magneto static simulation for a C-core, you will need to use a software program that specializes in electromagnetic simulations. You will need to input the relevant parameters and variables, create a 3D model of the C-core, and define the boundary conditions and external conditions for the simulation.

4. What are the common challenges when simulating a C-core in magneto statics?

One common challenge when simulating a C-core in magneto statics is accurately modeling the non-linear behavior of the magnetic material, which can affect the accuracy of the results. Another challenge is ensuring that the boundary conditions and external conditions accurately reflect the real-world scenario being simulated.

5. How can I validate the results of my C-core magneto static simulation?

To validate the results of your C-core magneto static simulation, you can compare them to experimental data or analytical calculations. Additionally, you can perform sensitivity analyses to see how varying certain parameters affects the results. It is also important to ensure that the simulation setup and conditions accurately reflect the real-world scenario being simulated.
