The Method of Joints (support reactions)

In summary, the Method of Joints is a structural analysis technique used to determine the internal forces in a truss structure by analyzing each individual joint and applying the equations of equilibrium. It can be applied to any type of truss but has limitations, such as only being applicable to trusses in equilibrium and assuming pinned joints and frictionless pins. Alternative methods for analyzing support reactions include the Method of Sections and the Method of Tension Coefficients.
  • #1
Julian21
3
0
So, I have a question regarding the method of joints used to solve force members in a truss. I am just starting the question and I am stuck on determining the moment in the support reactions.

So my questions are:

(1) For the moment around support reaction E do I include Force Dx in my equation?
So, [+Dx * 5]

(2) When finding the forces in the X direction is there a force in the Ex direction?

Thank you.

Physics news on Phys.org
  • #2

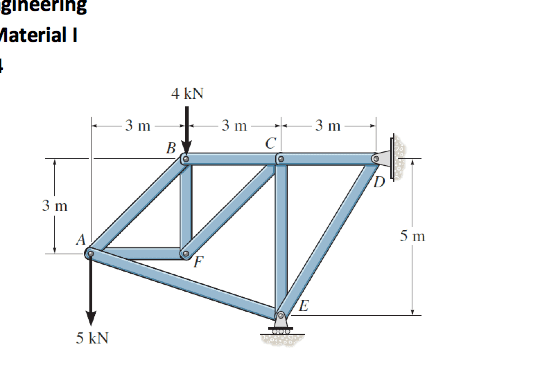

Screen shot 2012-10-10 at 5.17.21 PM.png
