What are test hooks used for in an electric tool kit?

Thread starter tsuwal
Start date Jun 26, 2013
Tags

Test

AI Thread Summary

Test hooks in an electric tool kit are used for making temporary connections to test circuits, similar to alligator clips but often providing a more secure connection. They typically feature a hook design that allows for easy attachment to components. Users can often solder wires to the underside of the button for additional functionality. While they may not have a universal connection point, they are versatile tools for electrical testing. Understanding their application can enhance the effectiveness of troubleshooting and circuit testing.

Jun 26, 2013

tsuwal

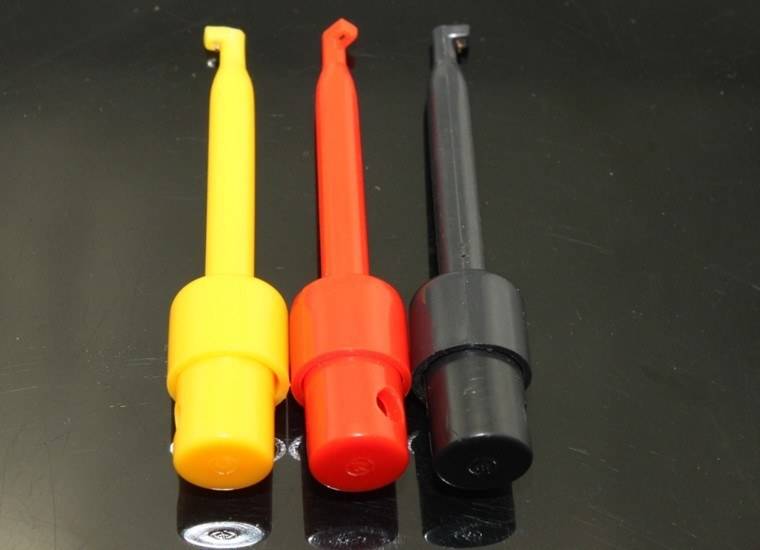

I just bought a eletric tool kit and this thing came with it:

I think they are called test hooks but i just can't figure out what are they for.. I can't find nothing that connects to the top hole of that thing.

Engineering news on Phys.org

Jun 26, 2013

Averagesupernova

Science Advisor

Gold Member

They do the same thing as an alligator clip only in a different way. Sometimes better. Pull the button off and there is likely a place to solder to underneath. I have always called them e-z hooks.
