Simple Pendulum Amplitude Investigation: Graph and Uncertainty Analysis

AI Thread Summary
The discussion focuses on investigating the relationship between the amplitude of a damped pendulum and the number of oscillations. The correct graphing approach involves plotting ln(A) against t, rather than ln(A/A0), to maintain clarity in units. Participants emphasize the importance of checking algebraic transformations when interpreting the graph's y-intercept. Additionally, uncertainty in the damping constant k can be calculated using error bars based on measurement errors. Overall, the conversation highlights the need for careful data handling and understanding of logarithmic relationships in physics experiments.
influx
Messages
162
Reaction score
1
As part of a Physics experiment I have to investigate how the amplitude of a pendulum bob (attached to a string) varies with the number of oscillations it undergoes. The equation I have to work with is:




(where t = the number of swings, A = amplitude after t swings, A0 = initial amplitude and k = the damping constant)



Am I correct in saying that ln(A/A0) would be the label on the y-axis and t would be the label of the x-axis?

IF yes, this would suggest that at the y-intercept , ln(A/A0) = lnA0 which suggests that at the y-intercept (where t=0) A = (A0^2). Is this correct?

Lastly, I am required to find the uncertainty in k by sketching the above graph and using error bars. I am unsure of how to go about this?

Briefing sheet:

http://photouploads.com/images/dzvsv.png
(PS:in the above document, 'n' is used to represent the number of swings rather than 't')

Physics news on Phys.org
influx said:
As part of a Physics experiment I have to investigate how the amplitude of a pendulum bob (attached to a string) varies with the number of oscillations it undergoes. The equation I have to work with is: [##A(t)=A_0e^{-kt}##]
(where t = the number of swings, A = amplitude after t swings, A0 = initial amplitude and k = the damping constant)
... this would be a damped pendulum - not a simple pendulum.

[##\ln A = -kt + \ln A_0##]

Am I correct in saying that ln(A/A0) would be the label on the y-axis and t would be the label of the x-axis?
If you plot ##\ln (A/A_0)## vs ##t## then yes.
Presumably you want to get a straight line?
Did you try it and see what you get?

(Experiments are about dealing with the data you have and not about trying to conform to an expected result: do it and see.)

IF yes, this would suggest that at the y-intercept , ln(A/A0) = lnA0 which suggests that at the y-intercept (where t=0) A = (A0^2). Is this correct?
No.
Check your algebra. How does the RHS go from the ##\ln A## above to ##\ln (A/A_0)##?

You may be better to just plot ##\ln(A)## vs ##t## instead.

Lastly, I am required to find the uncertainty in k by sketching the above graph and using error bars. I am unsure of how to go about this?
You know the errors for the measurements you made - use them to calculate the errors on the numbers you are plotting.
(Hint: if the error in y is small compared to the error in x, you can eave it off.)

Your course will probably have a specific method they want you to use to convert error bars into an overall uncertainty - check your notes.

Simon Bridge said:
... this would be a damped pendulum - not a simple pendulum.

Ah sorry. That's what I meant :)!

Simon Bridge said:
If you plot ##\ln (A/A_0)## vs ##t## then yes.
Presumably you want to get a straight line?
Did you try it and see what you get?

(Experiments are about dealing with the data you have and not about trying to conform to an expected result: do it and see.)

Yes I want to get a straight line. I was thinking of plotting lnA against t but then the y-axis (lnA) would have units and I thought log graphs are not meant to have units? Hence why I decided to plot ##\ln (A/A_0)## vs ##t##.

Simon Bridge said:
No.
Check your algebra. How does the RHS go from the ##\ln A## above to ##\ln (A/A_0)##?

You may be better to just plot ##\ln(A)## vs ##t## instead.

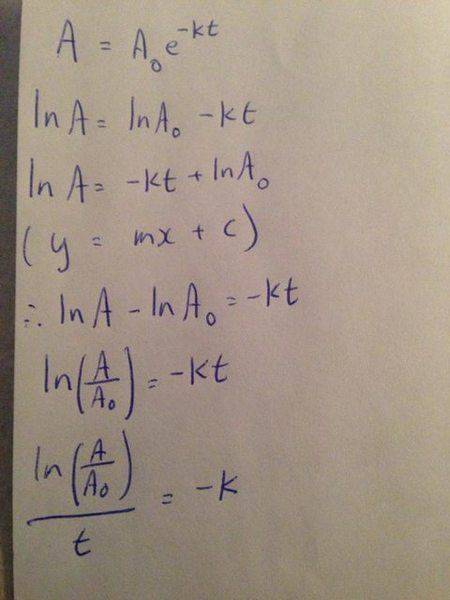

Well this is what I did (I can't see what I wrong?):




Thanks

when you change what you plot, you have to redo the y=mx+c step.
off y=mx+c, show me how you decided
y=
x=
m=
c=

... this is missing from your calculation pictured.

note: A/Ao is the size of A measured in units of Ao ... i.e. you still have units.
I don't think there is anything wrong with a log plot having units/dimensions on both axis, but it is tidier.
