Any good software for drawing control systems/flow charts out there?

  • Thread starter Jarfi
  • Start date
  • #1
372
12
Im drawing a system using control systems engineering. It changes over time and many factors affect each other. So far I've been using draw.io for drawing program architecture and it works great but Im looking for something more directed at flowcharts/control systems.

Requirements:
>Layers, Ability to draw many pathways, ability to hide different layers or show all.
>time windows. Here, sheets would be enough, but I want to be able to show how the system changes over time.
>Different colors
>FREE. I am a mere student with no income.
>Able to save my progress

Non-requirements:
>I dont need control system calculations, I can already use simulink for that, but ofcourse it wouldn't hurt.
>Stand alone application, it's ok if it's in browser but ofc I prefer an app.

Last edited:

Answers and Replies

  • #3
372
12
I want to add, import-ability to LaTeX doesn't hurt...

  • #4
FactChecker
Science Advisor
Gold Member
5,745
2,133
Since you already have Simulink diagrams, can you use those for your documentation? There are very serious coordination problems if the analysis, documentation, and code implementation have to be kept in line. There are code auto-generation capabilities from Simulink diagrams.

  • #5
372
12

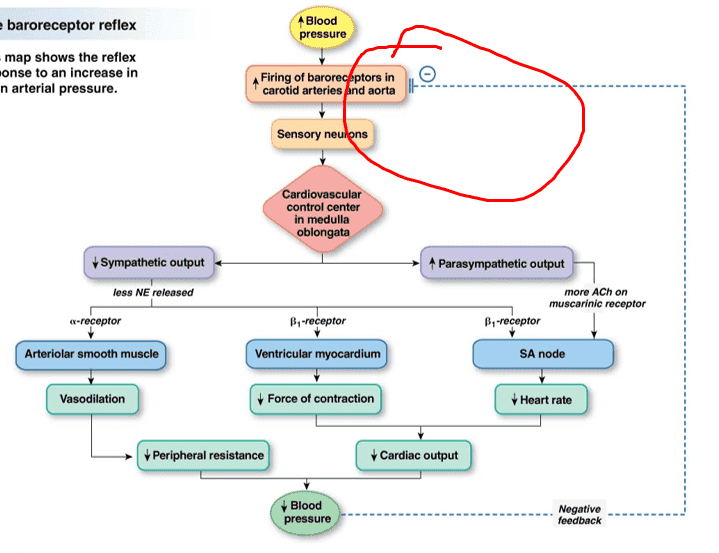

Simulink is a bit too slow and clunky for my purposes. i am not going to be running any mathematics for now. It's merely for conceptual drawing. Here is an similar thing of what i am trying to create, a biology textbook diagram with negative feedback, something i have not found in either draw.io or lucidchart.


Attachments

  • #6
372
12
UPDATE: I found a bunch of good ones. For others looking for the same yED, Graphviz and Dia Diagram Editor are good, desktop and without the online datamining that comes with server only apps.

  • Like
Likes FactChecker
  • #8
FactChecker
Science Advisor
Gold Member
5,745
2,133
Simulink is a bit too slow and clunky for my purposes. i am not going to be running any mathematics for now. It's merely for conceptual drawing. Here is an similar thing of what i am trying to create, a biology textbook diagram with negative feedback, something i have not found in either draw.io or lucidchart.
Keep in mind that successful projects can eventually grow into very large, complicated, detailed diagrams. It is the unsuccessful ones that stay small and simple. So unless you are prepared to throw away your early versions and start over, you should consider systems that can handle a large, complicated project. That requires a system that allows lower levels of diagrams, details of different signals and logic, state transition diagrams, bundling of signals, etc., etc., etc.

  • Like
Likes BvU and jedishrfu
  • #9
12,023
5,676
Yes, @FactChecker has some really good advice there. Not following his advice are some famous last words of people who used to work on the project but didn't plan for scalability and complexity.

  • Like
Likes OCR
