Calculate the Flux through the Pipe Part 2

  • #1
3,003
2

Homework Statement


Okay, so this was Part 1:

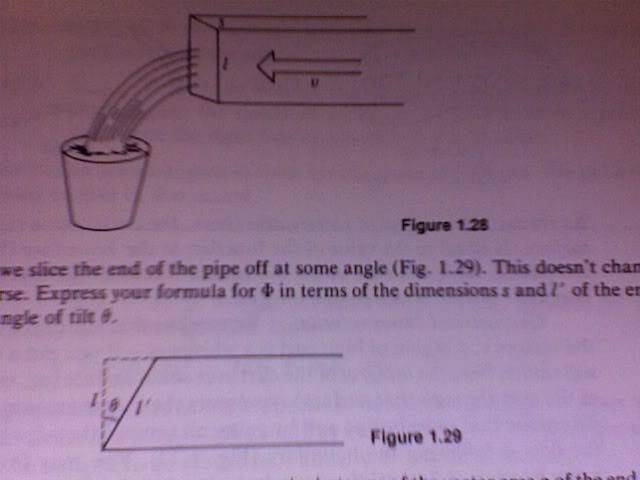

Water flows with a speed v down a rectangular pipe of dimensions s and l as shown. What is the rate
at which water accumulates in the bucket? (figure 1.28)
... which I solved as follows:

[tex]\phi=\int_{Surface} v \cdot da[/tex]

[tex]=\int_{Surface} v*da\cos\theta[/tex]

[tex]=\int_{Surface} v*da[/tex]

[tex]=\int_s\int_l v*(dsdl)=v*s*l[/tex]

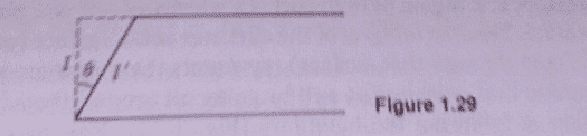

Now this is Part 2: Figure 1.29

We slice the end of the pipe off at some angle [itex]\theta[/itex]. This does not change [itex]\Phi[/itex]. Express your formula for [itex]\Phi[/itex] in terms of the dimensions s andl' and [itex]\theta[/itex].



So is the main idea of this to use only the normal component of A in the integral? (normal to v, that is).

Casey


Answers and Replies

  • #2
3,003
2
So how about this: if da is the normal to v

[tex]\phi=\int_{Surface} v \cdot da[/tex]

[tex]=\int_{Surface} v*da\cos\theta[/tex]

[tex]=\int_{Surface} v*(ds)(dl'\cos\theta)[/tex]

[tex]=v\cos\theta\int_s\int_{l'} *(dsdl')[/tex]

[tex]\Rightarrow\Phi=vsl'\cos\theta[/tex]

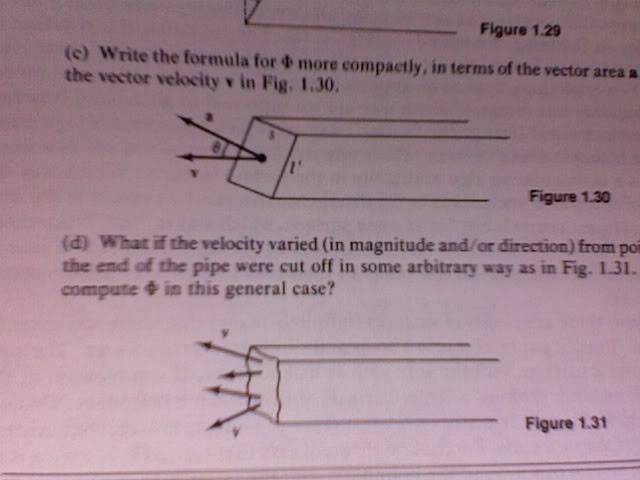

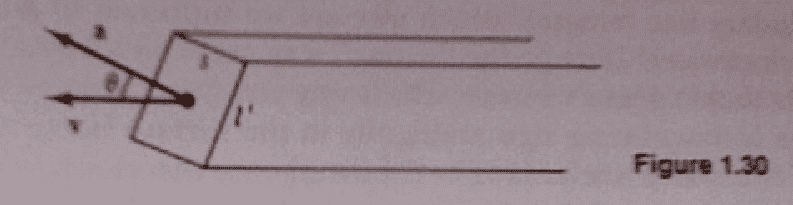

Now the next part of the problem says "Write the formula more compactly, in terms of the vector area a and the velocity vector v in figure 1.30"



I think this is just the integral I did above, but skipping the part where I substitute for da

That is [itex]\Phi=vacos\theta[/itex] correct?

And now the last part:

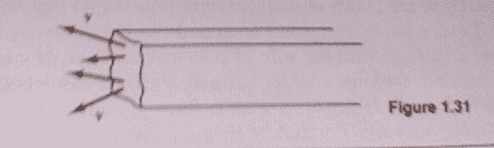

What if velocity varied (in magnitude and/or direction) from point to point, AND the end of the pipe were cut off in some arbitrary way as in fig 1.31; how would you compute the flux in the general case?"

I am thinking there is a summation inside of the integrand for this one... something like:

[itex]\Phi=\int_{Surface}\sum v_o\cos\theta_o\, da_o[/itex] but I dunno... looks ugly to me

Last edited:
  • #3
Stupid question but is this the same as electric flux?? Or can you view it the same way?

  • #4
Dick
Science Advisor
Homework Helper
26,258
619
phi=v*a*cos(theta) is not correct. For the first part you got v*s*l and for the second part you got v*s*l'*cos(theta). s*l' is not 'a'. Think about it some more. What's the relation between l and l'?

  • #5
Dick
Science Advisor
Homework Helper
26,258
619
Stupid question but is this the same as electric flux?? Or can you view it the same way?
You use the same sorts of mathematical tools, if that's what you mean. Things like the divergence theorem apply.

  • #6
3,003
2
phi=v*a*cos(theta) is not correct. For the first part you got v*s*l and for the second part you got v*s*l'*cos(theta). s*l' is not 'a'. Think about it some more. What's the relation between l and l'?
s*l'=a' ---> the actual area

So.... I want the component normal to v

How is s*l'*cos[itex]\theta[/itex] not the component that is normal to v?

  • #7
Dick
Science Advisor
Homework Helper
26,258
619
s*l'=a' ---> the actual area

So.... I want the component normal to v

How is s*l'*cos[itex]\theta[/itex] not the component that is normal to v?
Don't you mean the component that is parallel to v? I think the point they are trying to make here is that v*s*l=v*s*l'*cos(theta). The amount of water coming out of the pipe doesn't depend on the shape of the end. Your scan of the problem is sort of cut off. So I hope that's the point they are trying to make.

  • #8
283
0
s*l'=a' ---> the actual area

So.... I want the component normal to v

How is s*l'*cos[itex]\theta[/itex] not the component that is normal to v?
Isn't that the component of v normal to the surface a'?

Also, I'm wondering if the answer to your second question is just to use the method you used for the first questions, but without being able to factor out the terms involving theta or v since they would not be constant but instead functions of s and l. I think you could get the answers to the first questions without using a surface integral

  • #9
3,003
2
Isn't that the component of v normal to the surface a'?
Are we looking at the same diagram? Post #1 figure 1.29 ?



If v runs along the longitudinal axis of the pipe and I want the component of a that is perpendicular to it then I want v*s*l where l=l'cos[itex]\theta[/itex]

So how is [itex]\Phi=v*s*l'*\cos\theta[/itex] not correct? What (big idea) am I missing Dick?

Casey

  • #10
Dick
Science Advisor
Homework Helper
26,258
619
v*s*l'*cos(theta) IS correct. v*s*l is also correct for the first case. And they are equal. ANY surface that cuts across the end of the pipe has the same flux through it. I think that's the 'big idea'. Or did you already know that and am I missing the point of this exercise?

  • #11
3,003
2
Oh wait... I forgot what we are talking about :redface:

It's the writing it more compactly thing I messed up. Wait, I just noticed this...

...Don't you mean the component that is parallel to v
and now I am confused and I do not know why....

I think this is why, the definition is [itex]\int_{surface}\mathfb{v}\, d\mathbf{a}[/itex] where a is the area parallel to v, but the direction of a is given by the normal direction to a..... okay, my mistake.

Back to the question of how write v*s*l'*cos(theta) more compactly....

  • #12
3,003
2
Dick, looking at this diagram



why wouldn't [itex]\Phi=va\cos\theta[/itex] be correct?

  • #13
Dick
Science Advisor
Homework Helper
26,258
619
Sometimes questions can be a little obscure, but it says write it in terms of the vectors 'v' and 'a'. In v*s*l'*cos(theta) v is the length of the vector 'v', s*l' is the length of the vector 'a' and cos(theta) is, uh, the cosine of the angle between them. It's dot product, right?

  • #14
Dick
Science Advisor
Homework Helper
26,258
619
Dick, looking at this diagram



why wouldn't [itex]\Phi=va\cos\theta[/itex] be correct?
It depends on which 'a' you mean. I thought you meant a=l*s from the original problem. If you mean the new area l*s' then it's fine. Looks like a dot product, doesn't it?

  • #15
3,003
2
Sure didily does. How about this one:


The area is arbitrary and v varies with position.

I started with this: [itex]\Phi=\int_{Surface}\sum v_o\cdot\cos\theta_o\, da_o[/itex] but it looks kind of lame to me....

  • #16
Dick
Science Advisor
Homework Helper
26,258
619
How about just writing the integral of [itex] \vec v \cdot \vec n da[/itex] where n is the normal vector? Or [itex]\vec v \cdot d \vec a[/itex] where [itex] d \vec a=\vec n da[/itex]? Is that what you are trying to express?

  • #17
3,003
2
How about just writing the integral of [itex] \vec v \cdot \vec n da[/itex] where n is the normal vector? Or [itex]\vec v \cdot d \vec a[/itex] where [itex] d \vec a=\vec n da[/itex]? Is that what you are trying to express?
Oh sure. Do it the easy way :smile: This was the original question:



"What if velocity varied (in magnitude and/or direction) from point to point, AND the end of the pipe were cut off in some arbitrary way as in fig 1.31; how would you compute the flux in the general case?"

So [itex] \int_{s}\vec v \cdot \vec n da[/itex] would take care of it? Is that integral actually do-able? (not that it said it had to be... just curious) Since you would need to know the angle between v and a at every point....

  • #18
283
0
Like I said, I think it's just the same integral you used before except now v and theta aren't constant

  • #19
Dick
Science Advisor
Homework Helper
26,258
619
Oh sure. Do it the easy way :smile: This was the original question:


"What if velocity varied (in magnitude and/or direction) from point to point, AND the end of the pipe were cut off in some arbitrary way as in fig 1.31; how would you compute the flux in the general case?"

So [itex] \int_{s}\vec v \cdot \vec n da[/itex] would take care of it? Is that integral actually do-able? (not that it said it had to be... just curious) Since you would need to know the angle between v and a at every point....
If you know an actual equation for the surface A and the vector field v then you could certainly write down an integral.

  • #20
3,003
2
Cools. I have never see you use itex before Dick..... I am honored. This book is starting to piss me off. But I feel like I have to do all of the exercises anyway.

These are just the introductory "math chapters" to Griffith's Intro to Electrodynamics.... what a silly way to spend my X-mass break. I must really hate myself this year.

Thanks

  • #21
Dick
Science Advisor
Homework Helper
26,258
619
Cools. I have never see you use itex before Dick..... I am honored. This book is starting to piss me off. But I feel like I have to do all of the exercises anyway.

These are just the introductory "math chapters" to Griffith's Intro to Electrodynamics.... what a silly way to spend my X-mass break. I must really hate myself this year.

Thanks
I use TeX if I HAVE to. There were so many vectors and nonvectors floating around with the same name that I HAD to. Good luck!

  • #22
3,003
2
I use TeX if I HAVE to. There were so many vectors and nonvectors floating around with the same name that I HAD to. Good luck!
Good luck is right! I have till Monday, then I go back! I only on page 36!!! Hahahahahah!

  • #23
gabbagabbahey
Homework Helper
Gold Member
5,002
6
Cools. I have never see you use itex before Dick..... I am honored. This book is starting to piss me off. But I feel like I have to do all of the exercises anyway.

These are just the introductory "math chapters" to Griffith's Intro to Electrodynamics.... what a silly way to spend my X-mass break. I must really hate myself this year.

Thanks
Going through all of the chapter 1 probs in Griffith's before the semester starts will likely help you greatly! The vector calc methods in that chapter cover about 95% of the math methods used throughout the rest of the book. IMO, it is a very good way to spend ur X-Mas break :smile:

  • #24
3,003
2
Going through all of the chapter 1 probs in Griffith's before the semester starts will likely help you greatly! The vector calc methods in that chapter cover about 95% of the math methods used throughout the rest of the book. IMO, it is a very good way to spend ur X-Mas break :smile:
Except that I am Mechanical Engineering student... so I will never have to take that class :wink:

I just like Physics. .... where's that "shoot myself" smiley....
