Exploring the Relationship Between Complex Power and RL and RC Circuits

In summary, the conversation discusses using a formula to determine complex power in order to confirm or refute statements about a given equation. This can be done by assuming a source voltage and impedance, and using the formula S = EI* to calculate the current and observe the resulting signs and angles.
  • #1
in06khattab
2
0

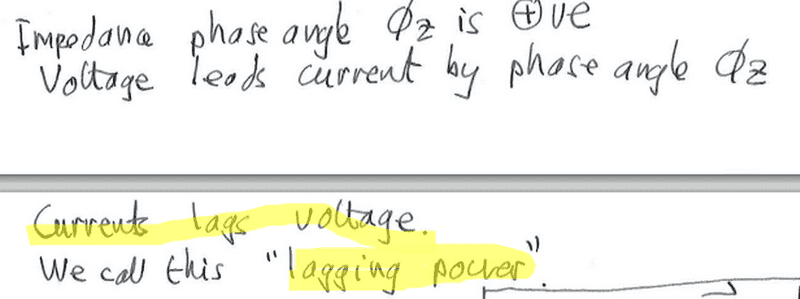

Is this true?


Or is this true?


Ø and Q are from this equation:

Physics news on Phys.org
  • #2
You can play with a few numbers to confirm or refute the statements. Here's how.

Suppose you assume a source voltage of E = 2V RMS. Set your impedance to a convenient value like Z = 1 + 1j Ω for an RL load, or to Z = 1 - 1j Ω for an RC load.

Now, a very handy formula to know is that the complex power is given by S = EI*, where I* is the complex conjugate of the current I (the sign of the imaginary term is reversed). You can determine the current for your sample values as I = E/Z. Plug in the values and see how the various signs and angles turn out.

  • #3
Thanks a lot


What is complex power in RL and RC circuits?

Complex power is a measure of the total power in a circuit that takes into account both the real (active) power and the reactive power. In RL and RC circuits, it is represented by a complex number that includes both a real component (active power) and an imaginary component (reactive power).

How is complex power calculated in RL and RC circuits?

The complex power in RL and RC circuits can be calculated using the formula S = VI*, where S is the complex power, V is the voltage, and I* is the complex conjugate of the current. It can also be calculated using the formula S = V^2/Z, where Z is the complex impedance of the circuit.

What is the difference between complex power and real power in RL and RC circuits?

The main difference between complex power and real power in RL and RC circuits is that real power only takes into account the active power (represented by the real component of the complex power), while complex power takes into account both the active and reactive power (represented by the imaginary component of the complex power).

Why is complex power important in RL and RC circuits?

Complex power is important in RL and RC circuits because it allows us to understand the total power in the circuit, including both active and reactive components. It is also necessary for calculating other important parameters such as power factor and impedance.

How does complex power affect the behavior of RL and RC circuits?

The behavior of RL and RC circuits is affected by the complex power in several ways. For example, the reactive power component of the complex power affects the phase relationship between voltage and current, while the active power component determines the amount of power dissipated in the circuit. Additionally, the total complex power can affect the stability and efficiency of the circuit.
