How Do You Calculate Equivalent Capacitance with a Middle Capacitor?

  • Thread starter Thread starter bassplayer142
  • Start date Start date
  • Tags Tags
    Capacitor
AI Thread Summary
To calculate the equivalent capacitance with a middle capacitor, it's important to recognize the configuration of the capacitors in the circuit. The basic formulas for series and parallel combinations, ceq = c1 + c2 for parallel and 1/ceq = 1/c1 + 1/c2 for series, are essential. The middle capacitor complicates the calculation, often requiring a different approach, such as analyzing the circuit as a Wheatstone bridge. Understanding the arrangement of the capacitors will help in determining how to simplify the circuit. Clarifying the connections and applying the correct formulas will lead to the solution.
bassplayer142
Messages
431
Reaction score
0

Homework Statement



find the equvialent capacitace

Homework Equations




ceq=c1+c2
1/ceq=1/c1+1/c2



The Attempt at a Solution

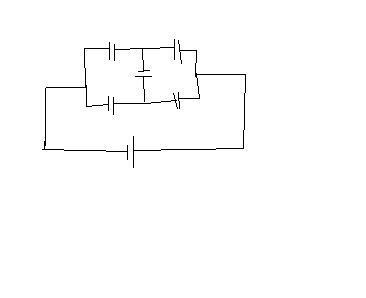

I know how to do some of these problems but this one has me stumped. I don't know how to start since the middle capacitor screws everything up. I think my teacher did it but I wasn't there for it and he won't do it again. Any help would be appreciated greatly. Don't worry about the charges and other specs as I can deal with that easily. Just the problem of the middle capacitor. I don't even know where to start to attempt this.


Attachments

  • untitled.JPG
    2.9 KB · Views: 375
Physics news on Phys.org
go and look at the theory for bridge (wheatstone bridge) circuit setup to get some ideas.
