Please help me do a wiring schematic

  • #1
alvinneedhelp
11
0
wire 6(3 watts)led bulbs in one switch for home 220v AC is it possible?


Answers and Replies

  • #2
berkeman
Mentor
63,252
14,215
wire 6(3 watts)led bulbs in one switch for home 220v AC is it possible?

Welcome to the PF.

It doesn't sound like you should be messing with an AC Mains project yet. What is the voltage rating of each of the LED bulbs? You should use a safety-approved DC voltage source to power your LED project. :smile:

  • #3
alvinneedhelp
11
0
the bulb is safety approved ac voltage source mate dedicated for homes.. its a pin light led lights

  • #4
alvinneedhelp
11
0
my problem is i don't know how to make a electrical schematic for the wiring of these 6 bulbs 3 watts each bulb in one switch.. running at 220v ac the bulbs are 220 compatible

  • #5
berkeman
Mentor
63,252
14,215
my problem is i don't know how to make a electrical schematic for the wiring of these 6 bulbs 3 watts each bulb in one switch.. running at 220v ac the bulbs are 220 compatible

So they screw into light fixtures that you wire to the AC Mains?

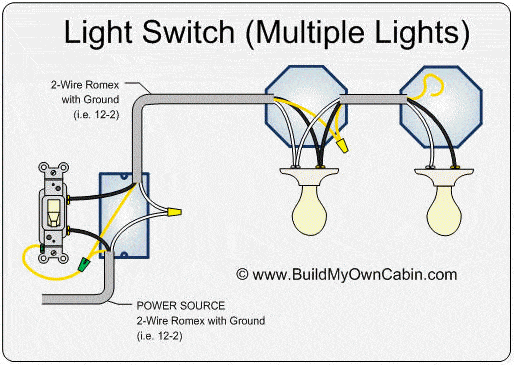

http://www.buildmyowncabin.com/electrical/wiring-multiple-lights.gif

  • #6
alvinneedhelp
11
0
thanks berkeman

  • #7
alvinneedhelp
11
0
<< All caps post fixed by Mentor >>

Yes, berkeman, for the AC Mains. My question is can I put 6 bulbs 3 watts each all in one switch -- will they work? Is it safe?

  • #8
alvinneedhelp
11
0
our ac wattage is 220 watts here in the philippines

  • #9
berkeman
Mentor
63,252
14,215
our ac wattage is 220 watts here in the philippines
No, your AC Mains *voltage* is 220Vac. :smile:

Yes, berkeman, for the AC Mains. My question is can I put 6 bulbs 3 watts each all in one switch -- will they work? Is it safe?
6 bulbs * 3 watts is only 18 watts. That is still a very light load. You may want to get an electrician to help you wire up the circuit. There are certain safety rules that you must follow.

  • Like
Likes dlgoff
  • #10
davenn
Science Advisor
Gold Member
2021 Award
9,626
8,842
There are certain safety rules that you must follow.

I take it you have never been to the Philippines ?

My wife is from there, and every time I visit, I cringe at the mains cabling strung around buildings ... commercial and homes
its truly a nightmare .... Rules ?! ... if there are rules, they are, unfortunately, rarely followed :frown:

The same applies to general building codes etc, I often think ... ohhh, I hope I'm not in here during an earthquake


Dave

  • #11
alvinneedhelp
11
0
No, your AC Mains *voltage* is 220Vac. :smile:


6 bulbs * 3 watts is only 18 watts. That is still a very light load. You may want to get an electrician to help you wire up the circuit. There are certain safety rules that you must follow.

  • #12
alvinneedhelp
11
0
hi berkeman thanks for correcting me.. our ac main is 220v AC :) my question.. is it possible to turn it on all 6 led bulbs in one switch without a problem.. i don't know how to make a wiring schematic.. the electrician is asking me.. thats why im researching for it and finding a forum that can help me do a simple schematic.. so i can make a plan for wiring.. so it will be safe for us to live in.. organized wiring and easy to repair if there is a problem.. thanks for the big help god bless bro

  • #13
alvinneedhelp
11
0
can you give me some rules that i can follow for our safety thanks.. big help davenn thanks for reminding :)

  • #14
berkeman
Mentor
63,252
14,215
can you give me some rules that i can follow for our safety thanks.. big help davenn thanks for reminding :)

I don't know if you are in the US, but even if you are in a different country, the NEC is a good reference for electrical safety. I'd recommend checking a copy out of your local library to read through, or just buy a copy online to use to learn:

https://www.amazon.com/dp/1455905445/?tag=pfamazon01-20

Last edited by a moderator:
  • Like
Likes davenn
  • #15
Windadct
1,435
401
If he is really an electrician - tell him to wire it up the same as 3 incandescent bulbs - if the LED are rated for the 220V - there is no difference in wiring them up. Technically we call this parallel. If he is still confused - please get a new electrician.

  • Like
Likes davenn, billy_joule and berkeman
  • #16
alvinneedhelp
11
0
ok berkeman ill try that and research for it..

  • #17
alvinneedhelp
11
0
hi windadct i think i need to get a new electrician too many question ask that's why i want to learn so i can help him.. get an idea.. what to do.. and see if he is doing it right..for our family safety.. god bless mate..
