PV graph question (trying to determine the work)

  • Thread starter Thread starter adam878787878
  • Start date Start date
  • Tags Tags
    Graph Work
AI Thread Summary
To determine the work done by the system from points A to C on the PV diagram, one must calculate the area under the curve between these points. The initial attempt at calculating work resulted in an incorrect value of 1596J. The correct approach involves using the formula for work, which is pressure multiplied by the change in volume (W = P * ΔV). It's essential to accurately identify the areas corresponding to the processes A to B and B to C on the graph. Properly applying these principles will yield the correct work done by the system.
adam878787878
Messages
11
Reaction score
0

Homework Statement

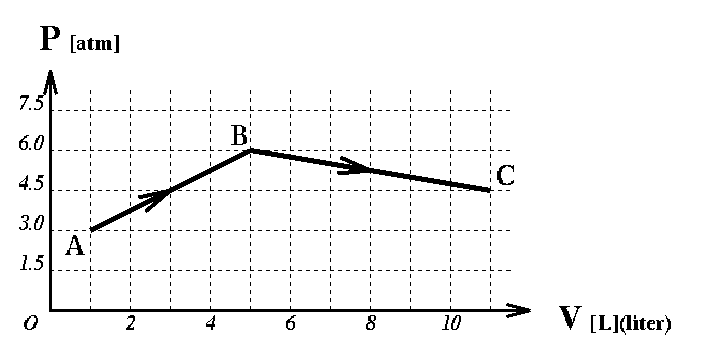

Look at the PV diagram of a system above. (attached) The units for P and V are atmospheric pressure atm and liter L. Process A to B and B to C are straight lines on it.
How much is the work done by the system from A to C in J?



Homework Equations


i know that work is the area under the graph, but when i add up areas, answer is wrong for some reason??


The Attempt at a Solution


W = .5(4*3) + .5(4*1.5) * 152J
= 1596J

this is wrong though
?



Attachments

  • showme2.gif
    4.4 KB · Views: 531
Physics news on Phys.org
>>>>Work Done is...[ p*delta V] i.e. pressure multiplied by CHANGE IN VOLUME.

This is enough for a hint...^^^
