The James Webb Space Telescope (JWST) is scheduled to launch no earlier than December 24, following a two-day delay, with a critical launch window extending to January 6 due to gravitational concerns. Enthusiasm is high among the community, with many eagerly anticipating the scientific data it will provide, despite concerns over the lengthy wait and significant costs associated with the project. Initial observing time has been allocated for various proposals, including a major project called Cosmos Web, which aims to capture detailed images of the early universe. The mission's success is seen as a gamble, with many previous missions sacrificed for JWST funding, raising questions about the return on investment. As the launch approaches, excitement and nervousness are palpable, with many setting alarms to witness the event live.
  • #401
pinball1970 said:
some sort diffraction?

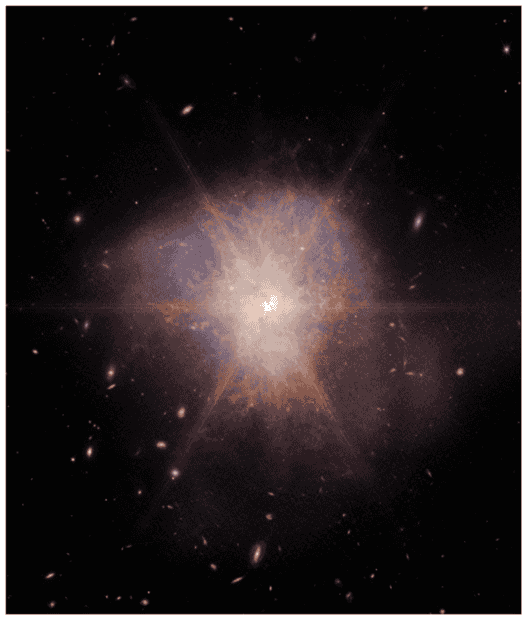

But there are no coloured edges and you don't get diffraction effects from massive objects (i.e. out in space). Diffraction would have to be taking place the telescope optics and would apply to many images of the appropriate brightness.

The explanation that it's due to ripples in dust, caused by regular pulses of light certainly gets my vote. 1. Regular pattern. 2. No colour effects. 3. The fact that it's a rare effect indicates some very high energy involved.

  • Like
Likes BillTre and pinball1970
Astronomy news on Phys.org
  • #402
https://arxiv.org/abs/2210.10074
with a nice write-up by John Timmer at
https://arstechnica.com/science/202...ed-from-galaxies-11-billion-light-years-away/

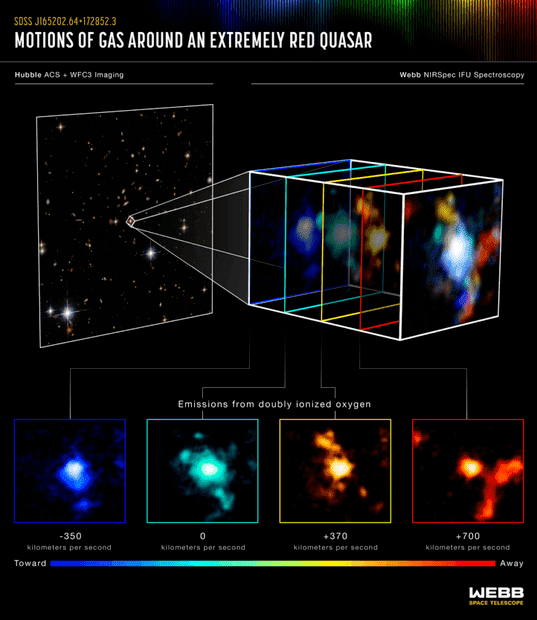

New Webb images illuminate the formation of a galaxy cluster​

A team of researchers is publishing a paper based on new images taken by the Webb Space Telescope. The images reveal a dense concentration of matter in the early Universe, potentially indicating early stages in the formation of a galaxy cluster. And thanks to the spectrograph present, Webb was able to confirm that several galaxies previously imaged by Hubble were also part of the cluster. It even tracked the flow of gas ejected by the largest galaxy present.

  • Like
  • Informative
Likes DennisN and pinball1970
  • #403
Thread is closed temporarily for Moderation (and possible thread split to break off the side-discussion about diffraction effects in telescopes)...

  • Like
Likes pinball1970 and sophiecentaur
  • #405
https://esawebb.org/news/weic2219/?lang :

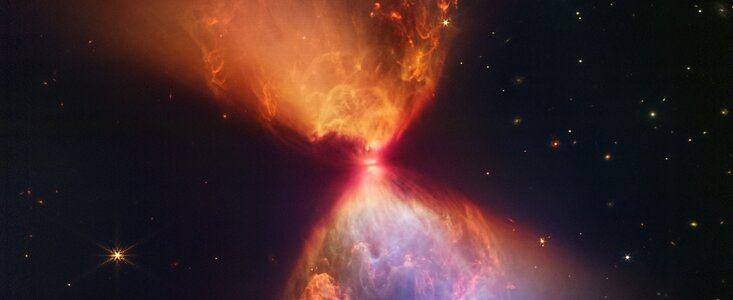

The NASA/ESA/CSA James Webb Space Telescope has revealed the once-hidden features of the protostar within the dark cloud L1527 with its Near Infrared Camera (NIRCam), providing insight into the formation of a new star. These blazing clouds within the Taurus star-forming region are only visible in infrared light, making it an ideal target for Webb.

  • Like
  • Love
Likes berkeman, Maarten Havinga, Borg and 1 other person
  • #406
They have fixed the issue with MIRI apparently. Nothing on the NASA site though.

Last edited:
  • #407
Analysis of micrometeorite impacts shows that the May event was likely really bad luck and should stay an outlier instead of a regular occurrence.


  • Like
  • Informative
Likes collinsmark, andrew s 1905, vanhees71 and 1 other person
  • #408
Which one of those two guys actually threw the test brick? It would certainly be a CV item for him.

  • #409
Make your own JWST.


  • Like
  • Love
  • Wow
Likes pinball1970, DAH, collinsmark and 4 others
  • #413
I don't understand why they felt compelled to make a video of a still image/

"Better"? It's in different wavelengths. Is green better than red? Or blue?

  • #414
Vanadium 50 said:
"Better"? It's in different wavelengths. Is green better than red? Or blue?
Resolution, detail.

  • #415
Uranus is pretty featureless. The rings seem to come out better, but that doesn;t surprise me in the IR.

Last edited:
  • Like
Likes vanhees71 and Motore
  • #416
Vanadium 50 said:
Uranus is pretty featureless. The rings seem to come out better, but that doesn;t surprise me
…please let me resist temptation for bad joke …

  • Haha
  • Like
Likes vanhees71, phinds and Borg
  • #417
The opportunities for Uranus jokes are...ahem...endless. And besides jokes, there is...inuendo.

Should I go on?

  • Like
  • Haha
Likes vanhees71 and Borg
  • #418
Vanadium 50 said:
I don't understand why they felt compelled to make a video of a still image/
Standard way of getting good planetary images. They aren't short of light with a big scope (or even a home one) so a large set of sequential images allows software to reject bad ones, re-position the selected images and then stack them. It's better than plain stacking of a few long exposures. Also, the contrast range will be a lot les for a planet than for galaxies and nebulae so it's a very different job altogether. "It's a very different job.":kiss:!!
There are pros and cons about flyby images vs Hubble images. Hubble can spot changes where a brilliant flyby image just shows things as they are - once in decades.

  • Like
  • Informative
Likes Imager, vanhees71, BvU and 1 other person
  • #419
No, what I don'y understand is why they took a picture and then put the picture on Youtube,. Why not just post the picture, a la APOD. Or is that so 20th century?

  • Like
Likes vanhees71 and sophiecentaur
  • #420
Vanadium 50 said:
No, what I don'y understand is why they took a picture and then put the picture on Youtube,. Why not just post the picture, a la APOD. Or is that so 20th century?
Oh, right. That sort of presentation is reckoned to be more sexy, I think. Screen saver stuff. But the image is not very special in the first place.

  • #421
Vanadium 50 said:
Uranus is pretty featureless. The rings seem to come out better, but that doesn;t surprise me in the IR.
Well I have never seen Uranus looking like that, the rings give it a different personality.
Set to music in a video I agree was probably not the best way to illustrate it.

  • #422
A recent clip on CBS 60 Minutes about the new images from JWST:

NASA's James Webb Space Telescope: Stunning new images captured of the universe | 60 Minutes
(April 10, 2023)

"As NASA’s Webb telescope scours the universe to find light from the first stars and galaxies, it is also capturing the universe like never before. Scott Pelley got an inside look at Webb’s new discoveries."


  • Like
  • Love
  • Informative
Likes Filip Larsen, BvU, pinball1970 and 1 other person
  • #423
At 2:30, he states that the galaxy they are looking at is more than 33 billion ly away??? Am I missing something? Last I remember, the universe is only 13 billion years old.

  • #424
Borg said:
Last I remember, the universe is only 13 billion years old.
Yes, but the observable universe has about a 45bn light years radius at present. The growth rate is not limited by ##c##.

  • Like
Likes pinball1970 and Borg
  • #425
Ah. I had never heard of anything being observed beyond 13 billion ly.

  • #426
  • #428
  • #429
pinball1970 said:
The six spike diffraction thing? @Andy Resnick @collinsmark with Webb?
Isn't that spike diffraction the standard thing with Webb, i.e. the same type of spikes that appear in photos of bright stars by Webb?

I don't know exactly why they appear (I guess it's either some "thingy" in front of the detector or maybe something due to the hexagonal mirrors, perhaps? (just a guess)). I remember seeing a video where they mentioned the spikes, but I don't think they specified in the video why the spikes appear.

  • Like
Likes pinball1970
  • #430
DennisN said:
I don't know exactly why they appear (I guess it's either some "thingy" in front of the detector or maybe something due to the hexagonal mirrors, perhaps?
It's a diffraction effect from the mirror, with six-fold symmetry because of the hexagonal structure.

  • Like
Likes collinsmark, DennisN, pinball1970 and 2 others
  • #431
If you look at (e.g.) this Astronomy Picture Of The Day from Hubble you can see cross shaped rays from the bright stars.

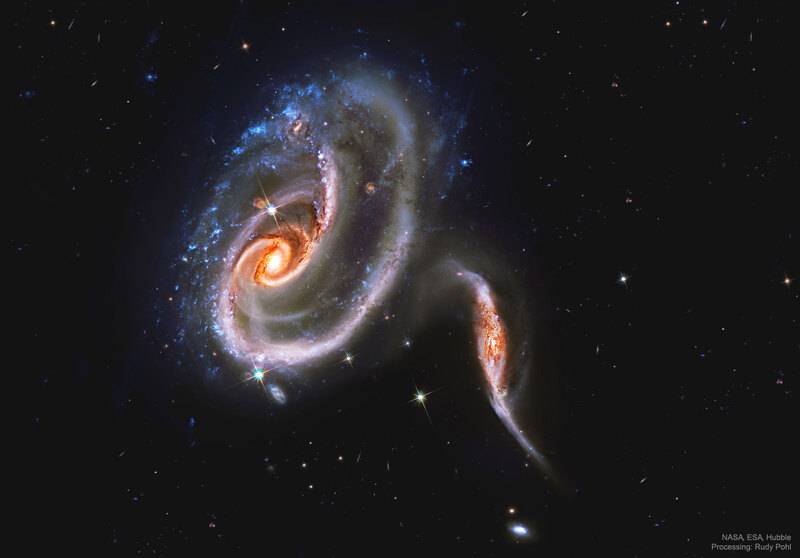

Source

That's a diffraction effect from the + shaped "spider" that supports the secondary mirror. Webb's spikes are more impressive, I would guess because it's a hexagonal mirror rather than a basically round mirror with a relatively minor four-fold symmetric obstruction.

  • Like
  • Wow
Likes DennisN and pinball1970
  • #432
Borg said:
At 2:30, he states that the galaxy they are looking at is more than 33 billion ly away??? Am I missing something? Last I remember, the universe is only 13 billion years old.
"Distance" in our expanding universe makes only sense if we mean distance at a fixed time, e.g. the distance between us and a galaxy far away at the time of emission or absorption of it's light.

  • Like
Likes pinball1970
  • #433
Ibix said:
It's a diffraction effect from the mirror, with six-fold symmetry because of the hexagonal structure.
It's the first big one I have seen since that initial calibration image. The star image with all the galaxies in the background that got all the astronomy community very excited.

  • #434
The six diffraction spikes are more caused by the three supports that support the secondary mirror. As said above, the Hubble has four secondary supports, so you get four diffraction spikes. The three Webb supports lead to six diffraction spikes, because you get one opposite to the support as well. I think the segmented mirrors also contribute to the diffraction spikes, but I think the secondary supports are the main cause.

  • Like
  • Informative
Likes russ_watters, timmdeeg, DennisN and 2 others
  • #435
phyzguy said:
The six diffraction spikes are more caused by the three supports that support the secondary mirror. As said above, the Hubble has four secondary supports, so you get four diffraction spikes. The three Webb supports lead to six diffraction spikes, because you get one opposite to the support as well. I think the segmented mirrors also contribute to the diffraction spikes, but I think the secondary supports are the main cause.
Every detailed description I have seen says that the hexagonal mirrors are the larger contributor and if you just ballpark it there are more hexagon edges than support edges. Also there are not six spikes, it has eight. The fainter horizontal one is caused by the vertical support. The other two supports line up with the non horizontal hexagon edges.

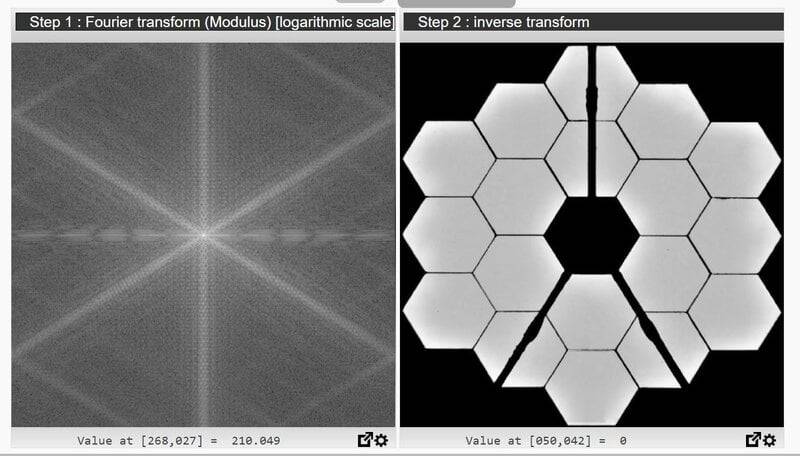

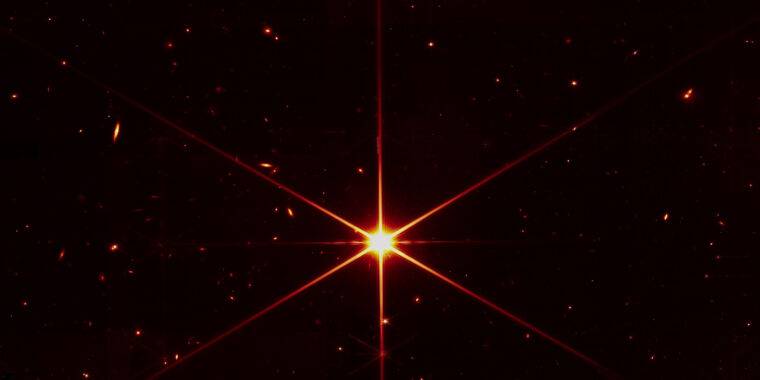

Fun fact if you run the FFT algorithm on the NIR selfie image you get the spike pattern as a result.


  • Like
  • Informative
Likes Motore, Tom.G, pinball1970 and 2 others
  • #436
phyzguy said:
The six diffraction spikes are more caused by the three supports that support the secondary mirror. As said above, the Hubble has four secondary supports, so you get four diffraction spikes. The three Webb supports lead to six diffraction spikes, because you get one opposite to the support as well. I think the segmented mirrors also contribute to the diffraction spikes, but I think the secondary supports are the main cause.
That isn't quite right.

If a telescope's secondary mirror was attached with a single rod/pole holding there would still be two diffraction spikes; each spike being perpendicular to the direction of the pole/rod/support.

In other words, consider a vertical pole that extends from the bottom of view to the center, where it holds the secondary mirror, the result would be two horizontal diffraction spikes: one in each direction. Now you can add another support, going from top to the center, without increasing the number of diffraction spikes, since the diffraction spikes from the two supports simply overlap.

The bulk of the diffraction spikes on the James Webb Space Telescope (JWST) come from the hexagonal pattern of the mirrors. Each mirror has 6 sides, and each side produces two diffraction spikes, one in each perpendicular direction. So there are really 12 spikes, but due to the symmetry of a hexagon there's overlap, so the end result is 6 observed spikes caused by the hexagonal shape.

Now we consider the 3 rods from the spider vanes holding the secondary in place. Two of those rods are aligned with the sides of hexagonal shape of mirror, so no new diffraction spikes are created by these rods (since they overlap with other spikes). That leaves the third rod that is not in line with any of the sides of the hexagonal shape of the mirrors. This rod leaves a new set of diffraction spikes -- and those additional two spikes are perpendicular to the rod.

So in the end, there's 8 diffraction spikes on JWST's optics: 6 prominent ones and 2 minor ones in the diffraction pattern.
[Edit: Technically, of the 8 diffraction spikes, there's 4 really prominent ones caused by both the hexagonal mirrors plus two of the secondary support rods, 2 somewhat prominent ones caused by the hexagonal mirrors without any secondary mirror support diffraction, and finally 2 subtle spikes caused by one of the support rods.]

It's worthwhile to note that this this diffraction pattern (which is wavelength dependent; I haven't discussed that here) doesn't just affect the resultant appearances of bright stars, but also the dim stuff too. Every light ray, every pixel in the image is affected by the convolution of the diffraction pattern across the entire image. Sure, the pattern is only obvious to bright stars due their higher contrast, but the diffraction pattern actually affects everything.

Edit: Conceptually, this is like trying to paint a picture on a canvas with the limitation that your brush is the shape of the diffraction pattern. It's not possible to place a dot on the canvas smaller than the brush/diffraction pattern; it's all or nothing. You can change the brightness, but not the size (for a given color). Also different colors will have slightly different sized brushes, thus slightly different sized diffraction patterns.

Last edited:
  • Informative
Likes Tom.G, DennisN, Filip Larsen and 1 other person
  • #437
  • Like
  • Haha
Likes Hornbein, timmdeeg, DennisN and 3 others
  • #438
collinsmark said:
That isn't quite right.

If a telescope's secondary mirror was attached with a single rod/pole holding there would still be two diffraction spikes; each spike being perpendicular to the direction of the pole/rod/support.

In other words, consider a vertical pole that extends from the bottom of view to the center, where it holds the secondary mirror, the result would be two horizontal diffraction spikes: one in each direction. Now you can add another support, going from top to the center, without increasing the number of diffraction spikes, since the diffraction spikes from the two supports simply overlap.

The bulk of the diffraction spikes on the James Webb Space Telescope (JWST) come from the hexagonal pattern of the mirrors. Each mirror has 6 sides, and each side produces two diffraction spikes, one in each perpendicular direction. So there are really 12 spikes, but due to the symmetry of a hexagon there's overlap, so the end result is 6 observed spikes caused by the hexagonal shape.

Now we consider the 3 rods from the spider vanes holding the secondary in place. Two of those rods are aligned with the sides of hexagonal shape of mirror, so no new diffraction spikes are created by these rods (since they overlap with other spikes). That leaves the third rod that is not in line with any of the sides of the hexagonal shape of the mirrors. This rod leaves a new set of diffraction spikes -- and those additional two spikes are perpendicular to the rod.

So in the end, there's 8 diffraction spikes on JWST's optics: 6 prominent ones and 2 minor ones in the diffraction pattern.
[Edit: Technically, of the 8 diffraction spikes, there's 4 really prominent ones caused by both the hexagonal mirrors plus two of the secondary support rods, 2 somewhat prominent ones caused by the hexagonal mirrors without any secondary mirror support diffraction, and finally 2 subtle spikes caused by one of the support rods.]

It's worthwhile to note that this this diffraction pattern (which is wavelength dependent; I haven't discussed that here) doesn't just affect the resultant appearances of bright stars, but also the dim stuff too. Every light ray, every pixel in the image is affected by the convolution of the diffraction pattern across the entire image. Sure, the pattern is only obvious to bright stars due their higher contrast, but the diffraction pattern actually affects everything.

Edit: Conceptually, this is like trying to paint a picture on a canvas with the limitation that your brush is the shape of the diffraction pattern. It's not possible to place a dot on the canvas smaller than the brush/diffraction pattern; it's all or nothing. You can change the brightness, but not the size (for a given color). Also different colors will have slightly different sized brushes, thus slightly different sized diffraction patterns.
This makes a lot of sense, and is much more correct than what I wrote. Thanks for the detailed explanation.

  • Like
Likes collinsmark
  • #439
https://www.physicsforums.com/attachments/fft-jpg.325333/
The vertical support causes the 2 horizontal spikes and the edges of each mirror segment and the other 2 supports cause the other 6 spikes, so there’s a actually 8 spikes but the 6 spikes from the mirror edges and slanted supports are more prominent.

If you look closely at the 2 horizontal spikes, wave interference effects are prominent (the dark areas within each horizontal spike.) Thats from the light taking 2 different length paths to the image sensor from diffraction on either side of the vertical support causing destructive wave interference at some locations.

Last edited:
  • Like
Likes pinball1970 and collinsmark
  • #440
I was surprised to find out with such a big mirror the f ratio on the Webb is f/20.2. F ratio tells you how bright a point source will be on the sensor pixel at a given exposure time, with smaller numbers being brighter and generally “better” and more expensive, usually meaning a wider lens with more glass for the same field of view. A very nice camera lens is usually f/1.4 or f/2.8. Very expensive telescopes are usually f/4 to f/8 range. I have a sub $1000 (cheap) 2000mm focal length Maksutov Cassegrain reflector telescope and it’s roughly f/14.5… the James Webb is f/20.2! That means despite its huge mirror, a given point source will be much dimmer on a given pixel than an ordinary camera or telescope for the same exposure time. Interesting.

  • #441
Borg said:
At 2:30, he states that the galaxy they are looking at is more than 33 billion ly away??? Am I missing something? Last I remember, the universe is only 13 billion years old.
To expand somewhat on what @timmdeeg said in post #432:

The universe IS only 13+billion years old, but it has been expanding all that time and the expansion is accelerating. SO ... something that we see, that released its light, say, 6 billion years ago is NOT 6 billion light years away. During the 6 billion years that it took for that light to reach us, the object that emitted it has moved MUCH father away.

The objects at the edge of the observable universe are receeding from us at about 3c and although we see their light as being 13 billion years old, the objects are now at something like 47 billion light years away from us.

  • Like
Likes pinball1970 and timmdeeg
  • #442
Devin-M said:
I was surprised to find out with such a big mirror the f ratio on the Webb is f/20.2. F ratio tells you how bright a point source will be on the sensor pixel at a given exposure time, with smaller numbers being brighter and generally “better” and more expensive, usually meaning a wider lens with more glass for the same field of view. A very nice camera lens is usually f/1.4 or f/2.8. Very expensive telescopes are usually f/4 to f/8 range. I have a sub $1000 (cheap) 2000mm focal length Maksutov Cassegrain reflector telescope and it’s roughly f/14.5… the James Webb is f/20.2! That means despite its huge mirror, a given point source will be much dimmer on a given pixel than an ordinary camera or telescope for the same exposure time. Interesting.

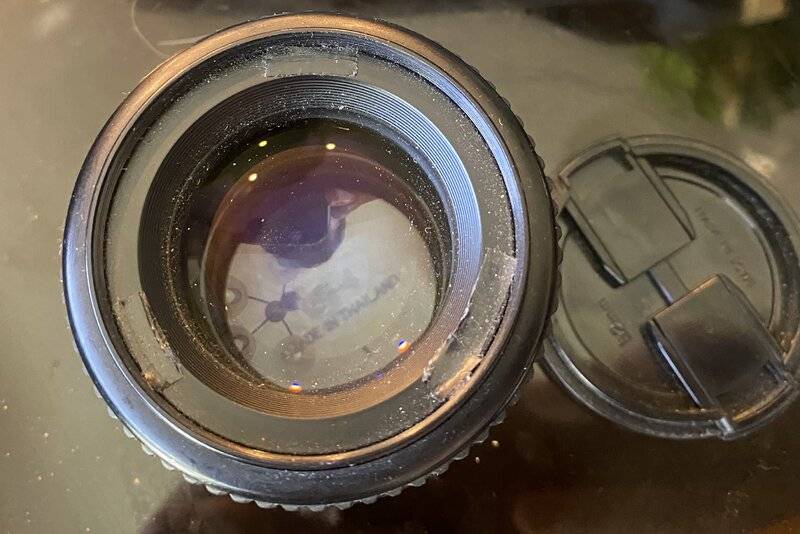

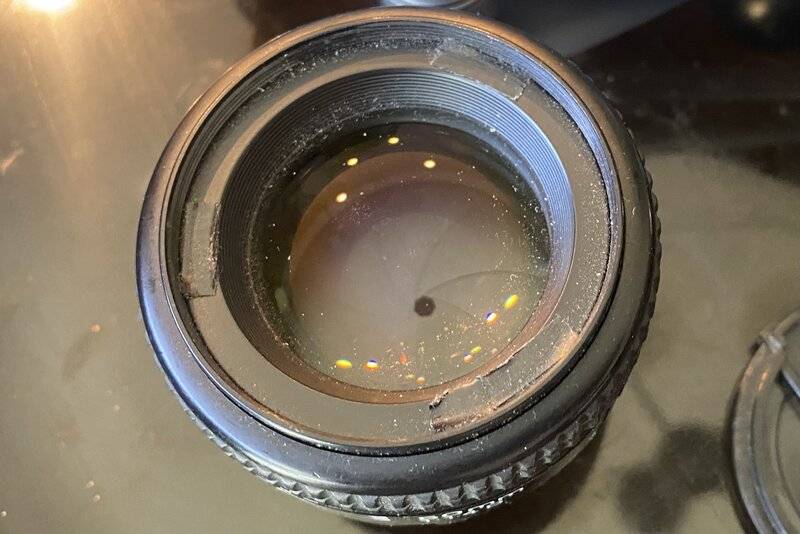

To Illustrate:

50mm focal f/1.4:


50mm focal f/16:

  • #443
Devin-M said:
That means despite its huge mirror, a given point source will be much dimmer on a given pixel than an ordinary camera or telescope for the same exposure time. Interesting.
Large telescopes for digital imaging use often have very large focal length (and high focal ratios). They compensate by having very large imaging chips with large pixels. Focal ratio is not very useful for them and is seldom used, etendue is the performance metric of choice among the professionals.

  • Like
Likes pinball1970 and russ_watters
  • #444
The Vera C Rubin Observatory will be f/1.2. Keck is f/1.75. Hubble f/24. Giant Magellan Telescope will be f/8.


Last edited:
  • Like
  • Informative
Likes Astronuc, DennisN, vanhees71 and 2 others
  • #445
Devin-M said:
The Vera C Rubin Observatory will be f/1.2. Keck is f/1.75. Hubble f/24. Giant Magellan Telescope will be f/8.

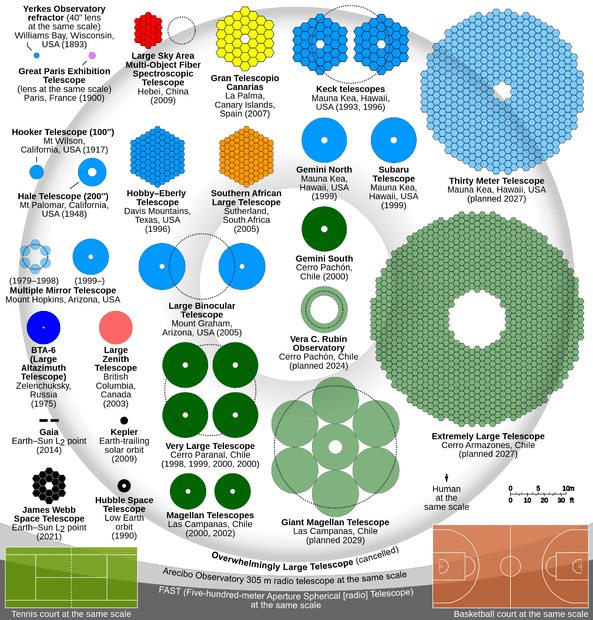

View attachment 325423
Some of those things make Webb look small!

  • #447
Webb Looks for Fomalhaut’s Asteroid Belt and Finds Much More (NASA, May 8, 2023)

NASA article: here
Nature paper: here
Science News article: here


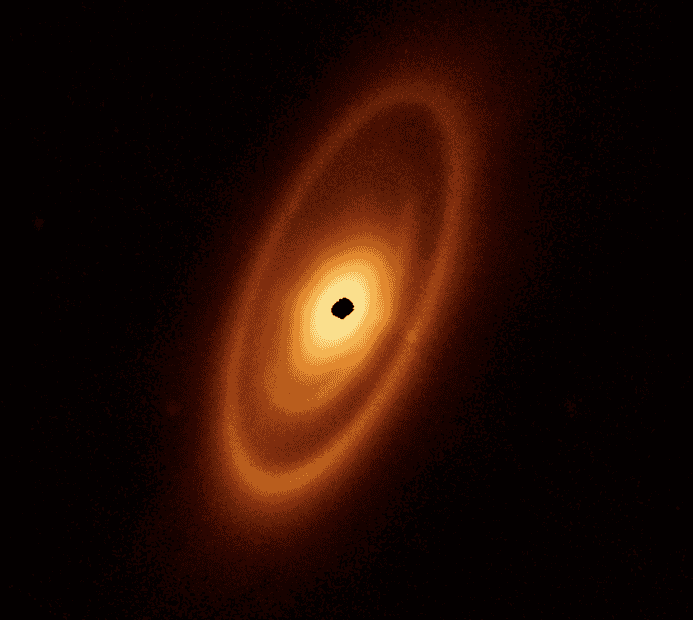

"This image of the dusty debris disk surrounding the young star Fomalhaut is from Webb’s Mid-Infrared Instrument (MIRI). It reveals three nested belts extending out to 14 billion miles (23 billion kilometers) from the star. The inner belts – which had never been seen before – were revealed by Webb for the first time.

Credits: NASA, ESA, CSA, A. Gáspár (University of Arizona). Image processing: A. Pagan (STScI)"

  • Like
  • Informative
  • Love
Likes DAH, Filip Larsen, BillTre and 3 others
  • #448
glappkaeft said:
Large telescopes for digital imaging use often have very large focal length (and high focal ratios). They compensate by having very large imaging chips with large pixels. Focal ratio is not very useful for them and is seldom used, etendue is the performance metric of choice among the professionals.
"etendue" That one I had to look up:

Short version:
https://en.wiktionary.org/wiki/etendue

Long version:
https://www.optica.org/en-us/events/webinar/2019/what_is_etendue_and_why_is_it_important/

  • #449
DennisN said:
Webb Looks for Fomalhaut’s Asteroid Belt and Finds Much More (NASA, May 8, 2023)

NASA article: here
Nature paper: here
Science News article: here

DennisN looks at Fomalhaut's Center and Finds Much More (PF, May 12, 2023)

1 - Fomalhaut.png


2 - Fomalhaut.png


3 - Fomalhaut.png


4 - Fomalhaut.png


Sorry, I could not resist :smile:.


Attachments

  • 3 - Fomalhaut.png
    3 - Fomalhaut.png
    74.4 KB · Views: 121
  • Haha
Likes phinds, Astronuc, BillTre and 3 others
  • #450
Nothing to see here.

  • Haha
  • Like
Likes gmax137, BvU and DennisN
