What Determines Voltage Changes in LDR Darkness Sensors?

  • Thread starter Thread starter Eisen
  • Start date Start date
  • Tags Tags
    Circuit Sensor
AI Thread Summary
The discussion focuses on understanding the voltage divider in a circuit involving a Light Dependent Resistor (LDR) and its output voltage. Participants seek clarification on which components form the voltage divider and where the voltage output is located. Additionally, there is confusion regarding the relationship between resistance and voltage in the LDR, specifically why voltage increases with higher resistance and decreases with lower resistance. The need for a clear explanation of these concepts is emphasized, as the referenced webpage lacks sufficient detail. Understanding these principles is crucial for effectively utilizing LDR darkness sensors.
Eisen
Messages
14
Reaction score
0

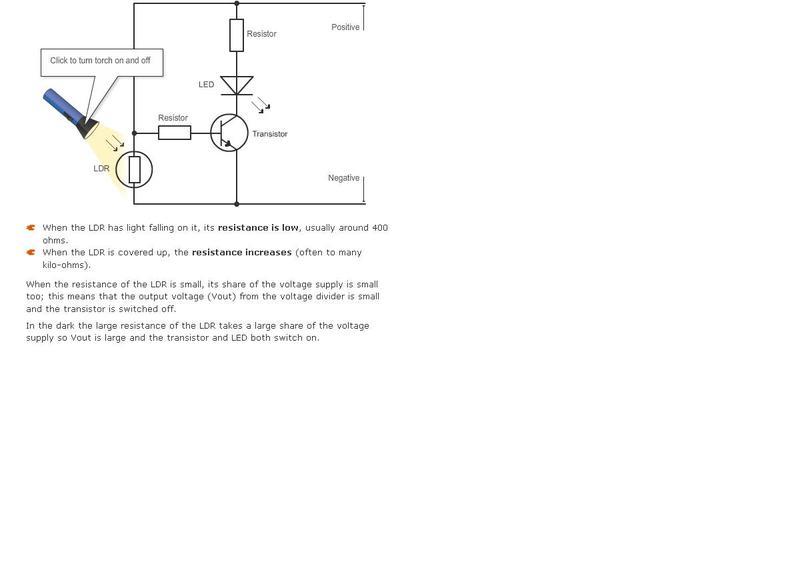

Here's the circuit-

darkness sensor.JPG


It isn't clear to me which part of this circuit makes the voltage divider and also it doesn't show where the voltage output is on the circuit. Can someone tell me those two things please. Also I don't understand why voltage increases as resistance increases in the LDR and why voltage decreases as resistance decreases in the LDR. Can someone explain that too please. It doesn't give an explanation why on this webpage I'm looking at.
