How Can I Connect a 36-Pin Wiring Black Box Without a Diagram?

AI Thread Summary
Connecting a 36-pin wiring black box without a diagram can be challenging, but creating a wiring diagram by tracing the circuit is a viable option. The device is designed primarily for activating solenoids. A user managed to contact the manufacturer, who provided the necessary diagrams for proper connection. This highlights the importance of reaching out to the original creator for assistance. Overall, while it may require some effort, solutions are available for those needing to connect the device.
Wetmelon
Messages
154
Reaction score
1

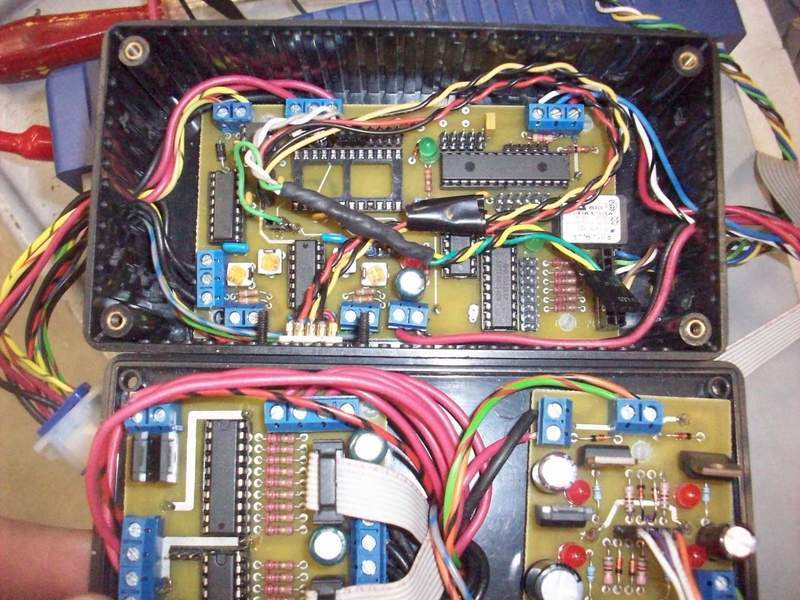

I know what this is SUPPOSED to do, but I have no diagram to show me how to hook up the *counts* 36 pins. Image attached.

Is there any hope for me, doc?


Attachments

  • 100_1668.jpg
    85.8 KB · Views: 460
Engineering news on Phys.org
What is it supposed to do?

You might have to open up mutlisim and just make the wiring diagram your self by tracing through the circuit. You can also do it by hand.

It's supposed to do a lot of stuff, mainly activating solenoids. But I finally got a hold of the guy who made it and he had the diagrams:
