Design a Flashlight LED Reflector Lens for Flooding

  • Thread starter Thread starter Hot Brass
  • Start date Start date
  • Tags Tags
    Design Lens
AI Thread Summary
The discussion focuses on designing a flashlight with an LED reflector that produces a good spot but requires edge flooding. The user seeks advice on creating a lens to disperse light around the edges and is looking for simple design tools. Recommendations include software options like TracePro or LightTools for lens design. Additionally, the user is interested in sourcing affordable lenses, specifically around 2 inches in diameter, in Atlanta. The conversation emphasizes the need for effective tools and materials to achieve the desired lighting effect.
Hot Brass
Messages
3
Reaction score
0

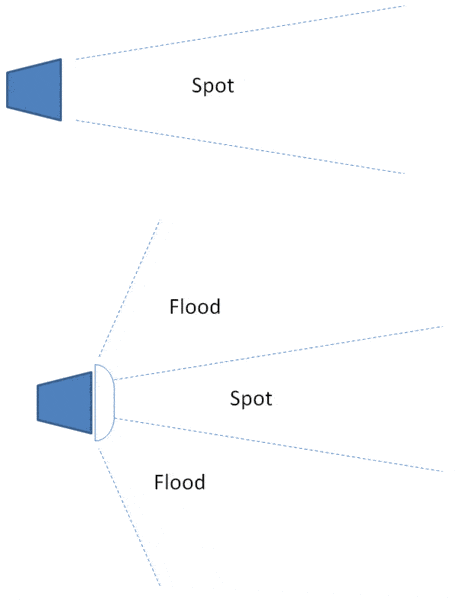

I'm designing a flashlight using a new LED reflector. It creates a good spot, but I want it to flood on the edges. See image below. My thought was to create a lens and put it in front of the LED reflector to disperse the light around the edges. Can anyone point me to some simple tools that will help me design the lens?


Attachments

  • light_dist.gif
    5.8 KB · Views: 607
Engineering news on Phys.org
Thanks George. Where can I get cheap lens?

I'm in Atlanta. The lens needs to be about 2" in dia.

Hot Brass said:
I'm designing a flashlight using a new LED reflector. It creates a good spot, but I want it to flood on the edges. See image below. My thought was to create a lens and put it in front of the LED reflector to disperse the light around the edges. Can anyone point me to some simple tools that will help me design the lens?

you need a software,like tracepro or lighttools.
