Plot 3D graph of electric potential of a charged particle

In summary, to plot the electric potential ##V(r)## due to a positively charged particle located at the origin of an XY plane, you can use the formula ##V=\frac 1 {4πε_0} \frac q r## and plug it into a software like Matlab or online tools like WolframAlpha or Mathpix to generate a 3D plot. The formula can be derived from the electric potential equation for a point charge, and the plot will show the potential in relation to distance from the origin. The plot will not be labeled with axes, so it is important to note that the variable ##r## represents distance from the origin.
  • #1
AdrianMachin
40
2

Homework Statement


Plot the electric potential ##V(r)## due to a positively charged particle located at the origin of an XY plane.

Homework Equations


##V=\frac 1 {4πε_0} \frac q r##

The Attempt at a Solution

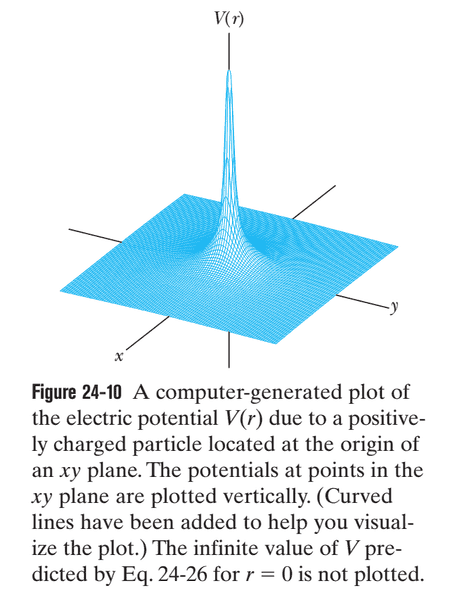

I'm unfamiliar with 3D coordinates at this time, but I like to know how can I plot it using a computer program like Matlab or online tools like WolframAlpha or Mathpix. I'm looking for the formula that I can plug into a software to see the 3D plot, plus an explanation for how to derive that formula. In the attachment, you can see the plot from my textbook (Fundamentals of Physics), but I don't why it's written ##V(r)## where no axes are named ##r##.


Attachments

  • plot.png
    30.1 KB · Views: 1,042
Physics news on Phys.org
  • #2
AdrianMachin said:

Homework Statement


Plot the electric potential ##V(r)## due to a positively charged particle located at the origin of an XY plane.

Homework Equations


##V=\frac 1 {4πε_0} \frac q r##

The Attempt at a Solution


I'm unfamiliar with 3D coordinates at this time, but I like to know how can I plot it using a computer program like Matlab or online tools like WolframAlpha or Mathpix. I'm looking for the formula that I can plug into a software to see the 3D plot, plus an explanation for how to derive that formula. In the attachment, you can see the plot from my textbook (Fundamentals of Physics), but I don't why it's written ##V(r)## where no axes are named ##r##.

I don't have access to Matlab or Mathematica (I use Maple instead), but a simple Google search on the keywords '3d plots in MATLAB turns up several articles on the topic.
