Plotting from stream function in Maple

1 reply · 2K views · last reply
Qwinzzi
Messages
1
Reaction score
0

Homework Statement


So the question is to plot the streamlines of the stream function.
ψ(r,θ)=[v][/0](r-1/r)sin(θ)=constant

Homework Equations


Im asked to do this in MATLAB or maple. preferably maple. But equations that is needed to plot it is also totally fine.

The Attempt at a Solution


It should look something like this

Attachments

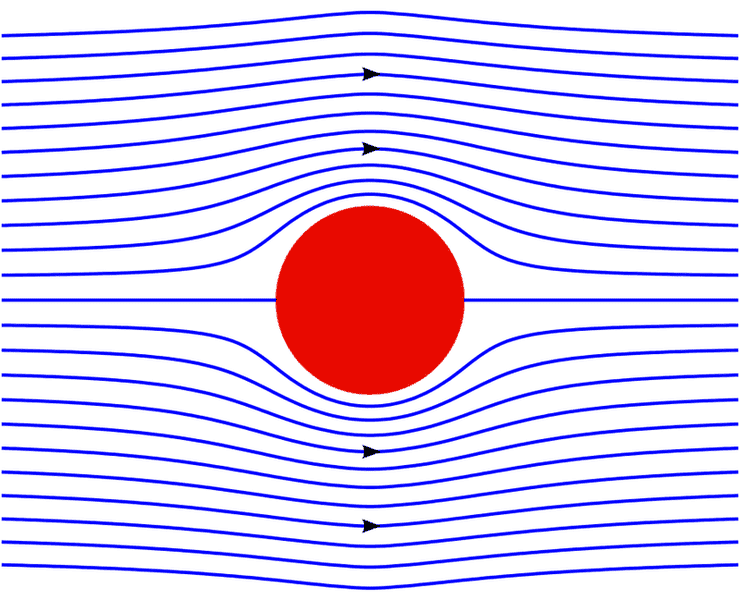

  • Streamlines of uniform flow past a circular cylinder: horizontal blue lines flowing left to right, bending around a red circle at the centre, with arrows showing flow direction.
    34.6 KB · Views: 557
You'll need to show your attempt to achieve the desired result. As it stands you haven't asked a question that can be addressed without doing the problem for you. That's not allowed by the rules of Physics Forums (You've read the rules, right?).

What have you tried? Show your code. Show your equations.
