Question about electric field of a point figure in book

AI Thread Summary
The discussion centers on understanding a figure from "Physics for Scientists and Engineers" by Giancoli, specifically regarding the electric field of point charges. It clarifies that the electric field of a negative charge points inward, while that of a positive charge points outward. Participants inquire about the significance of the force depicted in the diagram, particularly its direction relative to the electric field. The conversation also touches on relevant equations that describe the force experienced by a charge in an electric field. Overall, the focus is on clarifying concepts related to electric fields and forces in the context of the figure.
Frankenstein19
Messages
56
Reaction score
0
Member advised to use the homework template for posts in the homework sections of PF.

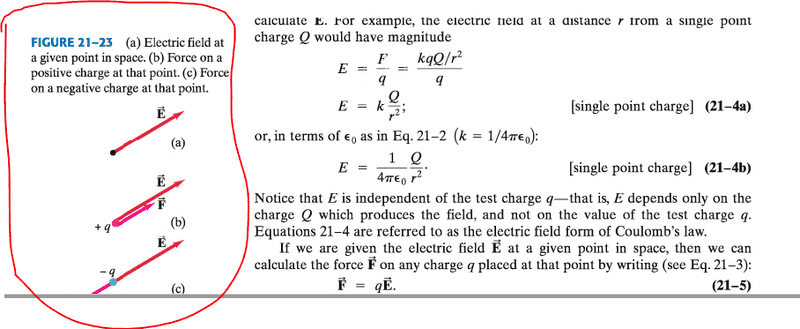

I'm studying for my physics exam and there is a figure on the book physics for scientists and engineers 4th edition by giancoli that i just don't understand. I know that the electric field of a negative charge points toward it and the electric field of a positive charge points away from it

Also why is the force included in that diagram, what does it mean if it is parallel to the electric field or points against it?


thank you in advanced

Physics news on Phys.org
Please remember to use the formatting template for all homework questions.

Frankenstein19 said:
I'm studying for my physics exam and there is a figure on the book physics for scientists and engineers 4th edition by giancoli that i just don't understand. I know that the electric field of a negative charge points toward it and the electric field of a positive charge points away from it
What is it you don't understand about the figure? What is included in parts (b) and (c) that does not appear in part (a)?

What relevant equation tells you the force that a charge experiences when subjected to an electric field?
